AIDA Imaging

AIDA Imaging believes that innovation is key to crafting their tried and tested quality imaging solutions. They strive to raise
the bar by engineering and manufacturing cutting edge cameras and converters. From concept to reality, AIDA Imaging
meticulously creates products that are applicable to various solutions, ranging from a casual day in the park
to a professional film studio.

Their mission: To make a robust product line that simultaneously meets effectiveness and efficiency for the global user.

All AIDA Imaging devices are proudly designed in the United States and manufactured with the
highest practice and quality in South Korea.

PRODUCTS

PTZ-NDI-X12

Full HD NDI®|HX2 Broadcast PTZ Camera

Capturing The Unreachable with NDI®

The PTZ-NDI-X12 is AIDA’s first camera to utilize NDI®|HX2 technology. The camera features Newteks NDI®|HX2 to help ease production with seamless video transfer over almost any existing network infrastructure. With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP based controllers, simplifying existing workflows with better cable management. The camera features traditional multi-video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as online video outputs RTSP/RTMP. Our camera’s cost-effective approach makes professional-grade PTZ cameras, at the fraction of the price.

NDI®|HX2, NewTek’s innovative Network Device Interface technology, is a royalty-free standard enabling IP video workflows across Ethernet networks. NDI®|HX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and audio in real-time. The NDI®|HX2 encoding algorithm is resolution and frame-rate independent, supporting up to 4K and beyond, as well as multi-channel, floating-point audio up to 16 channels and beyond. NDI®|HX2 also includes tools to implement video access and grouping, bi-directional metadata, tally, and more.

Key Features

• NDI®|HX2 streaming capable for low latency video streaming and PTZ control over NDI®|HX2 Protocol.

• Full HD Progressive Scan sensor captures sharp and vivid colour under different light conditions.

• Advanced digital image processor provides vivid and detailed images with full access feature sets.

• Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion
video without blur.

• 3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance.

• Power Optical Zoom capability up to 12X.

• Compatible with other industry-leading products, conforming with SMPTE 424M/292M standard.

• Auto White Balance and shutter speed provides the optimized performance in a variety of situations.

• Built-in OSD controls for customizable image settings.

• Versatile and compact.

Specifications

Video

Image Sensor 1/2.5″ Progressive CMOS
Effective Pixels Horizontal: 1920, Vertical: 1080
Pixel Size 2.13 µm x 2.13 µm
Resolution 1080p & 1080i: 1920 x 1080
Resolution/Rate 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
IP Rate 1920 x 1080 @ 1~60
1280 x 720 @ 1~60
1024 x 576 @ 1~60
620 x 360 @ 1~60
Output HD-SDI/3G-SDI
HDMI
RTSP / RTMP / NDI®|HX2
USB 3.0 & 2.0
Color Space 4:2:2 (YCbCr) 10bit
Min. Illumination 0.1Lux

Function

White Balance Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
Focus Auto, Manual
Shutter Speed 1 to 1/10,000 Sec.

Lens

Lens 12X HD Optical Zoom, F1.5 ~ F3.0

PTZ

Pan/Tilt Range Pan: 340°, Tilt: +90 to -30°
Pan/Tilt Speed Pan: 0° to +120°/s, Tilt: 0° to +80°/s,
Presets 128 Positions
Field of View 72.5°

Standard

SMPTE SMPTE 292M, SMPTE 424M
IP Protocol TCP/IP, RTSP/RTMP

Physical

Camera Control Protocol: VISCA
Interface: RS-232C IN & OUT, RJ-45
Remote Controller
Operation Temp 32° F – 104° F
Dimension 155mm x 160m x 170mm / 6.10″ x 6.92″ x 6.69″
Weight 1.35kg / 2.97lbs
Power 12VDC (+9 – +15VDC)
PoE+

PTZ-NDI-X20

Full HD NDI®|HX2 Broadcast PTZ Camera

Capturing The Unreachable

The PTZ-NDI-X20 is AIDA’s first camera to utilize NDI®|HX2 technology. The camera features Newteks NDI®|HX2 to help ease production with seamless video transfer over almost any existing network infrastructure. With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP based controllers, simplifying existing workflows with better cable management. The camera features traditional multi-video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as online video outputs RTSP/RTMP. Our camera’s cost-effective approach makes professional-grade PTZ cameras, at the fraction of the price.

NDI®|HX2, NewTek’s innovative Network Device Interface technology, is a royalty-free standard enabling IP video workflows across Ethernet networks. NDI®|HX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and audio in real-time. The NDI®|HX2 encoding algorithm is resolution and frame-rate independent, supporting up to 4K and beyond, as well as multi-channel, floating-point audio up to 16 channels and beyond. NDI also includes tools to implement video access and grouping, bi-directional metadata, tally, and more.

Key Features

• NDI®|HX2 streaming capable for low latency video streaming and PTZ control over NDI®|HX2 Protocol.

• Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.

• Advanced digital image processor provides vivid and detailed images with full access feature sets.

• Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion
video without blur.

• 3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance.

• Power Optical Zoom capability up to 20X.

• Compatible with other industry leading products, conforming with SMPTE 424M/292M standard.

• Auto White Balance and shutter speed provides the optimized performance in a variety of situations.

• Built-in OSD controls for customizable image settings.

• Versatile and compact.

Specifications

Video

Image Sensor 1/2.85″ Progressive CMOS
Effective Pixels Horizontal: 1920, Vertical: 1080
Pixel Size 2.13 µm x 2.13 µm
Resolution 1080p & 1080i: 1920 x 1080
Resolution/Rate 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
IP Rate 1920 x 1080 @ 1~60
1280 x 720 @ 1~60
1024 x 576 @ 1~60
620 x 360 @ 1~60
Output HD-SDI/3G-SDI
HDMI
RTSP / RTMP / NDI®|HX2
USB 3.0 & 2.0
Color Space 4:2:2 (YCbCr) 10bit
Min. Illumination 0.1Lux

Function

White Balance Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
Focus Auto, Manual
Shutter Speed 1 to 1/10,000 Sec.

UHD-X31

4K HDMI POV Camera

MICRO 4K POV CAMERA – Professional micro 3X Zoom POV Camera

The UHD-X3L is a professional micro POV camera with 3X optical zoom capabilities. Ideal for wide-angle viewing, the UHD-X3L is robust in its features, integrating 4K UHD Progressive CMOS sensors with a digital image processor to maintain sharpness in quality without compromise.

The UHD-X3L is great under low light conditions with its motion-compensated temporal noise reduction filter. Designed for versatility, durability, and cost-effectiveness for smooth integration into any broadcast, professional, or corporate AV environment.

Key Features

• 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.

• 3X optical zoom features 25~78 wide angle of view.

• Built-in zoom lens offers zoom, focus and iris control.

• Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.

• Superb motion-compensated temporal noise reduction filter for motion video without blurring.

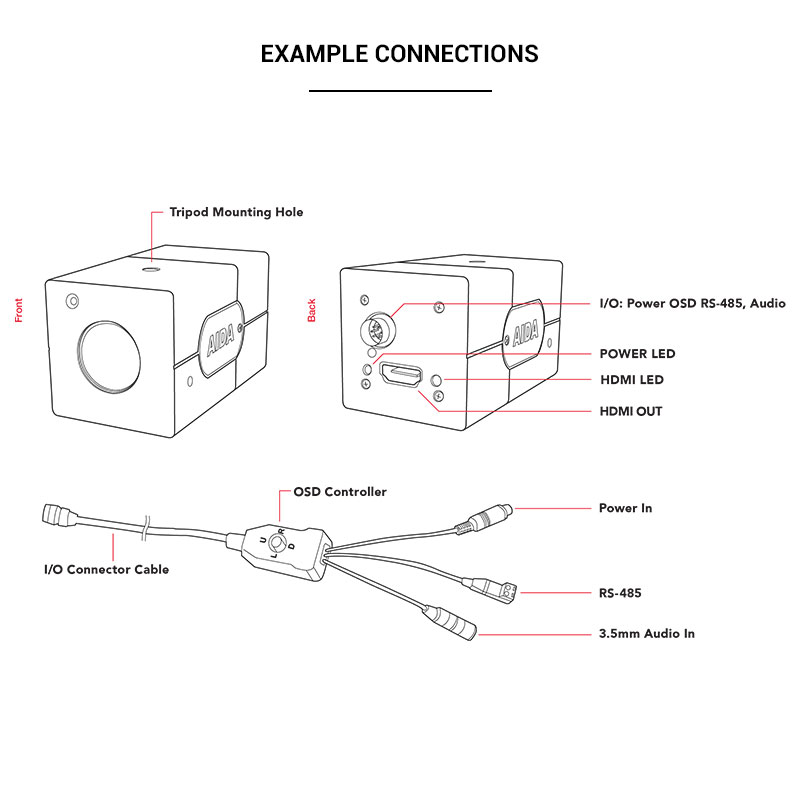

• OSD control breakout cable with power input and RS-485 for remote communication.

• Perfectly suited for huddle rooms, broadcast, pro audio/video, and security.

• Versatile, compact, and rugged design.

Specifications

Video

Image Sensor 1/2.5″ Progressive CMOS
Sensor Size Diagonal 7.20mm
Effective Pixels Horizontal: 3840, Vertical: 2202
Pixel Size 1.62 μm (H) x 1.62 μm (V)
Resolution 2160p: 3840 x 2160
1080p / 1080i : 1920 x 1080
720p : 1280 x 720
Resolution/Rate 4K2160p : 30 / 29.97 / 25 / 24
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24
1080i : 60 / 59.94 / 50
720p : 60 / 59.94 / 50
Output HDMI 1.4
Color Space 4:2:2 (YCbCr) 10 bit

Function

White Balance AWB / AE / AF
Exposure Full Auto, Bright, Shutter Priority, Iris Priority, Manual
Other WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,
Digital Slow Shutter, Black Level Compensation, Flicker Detection

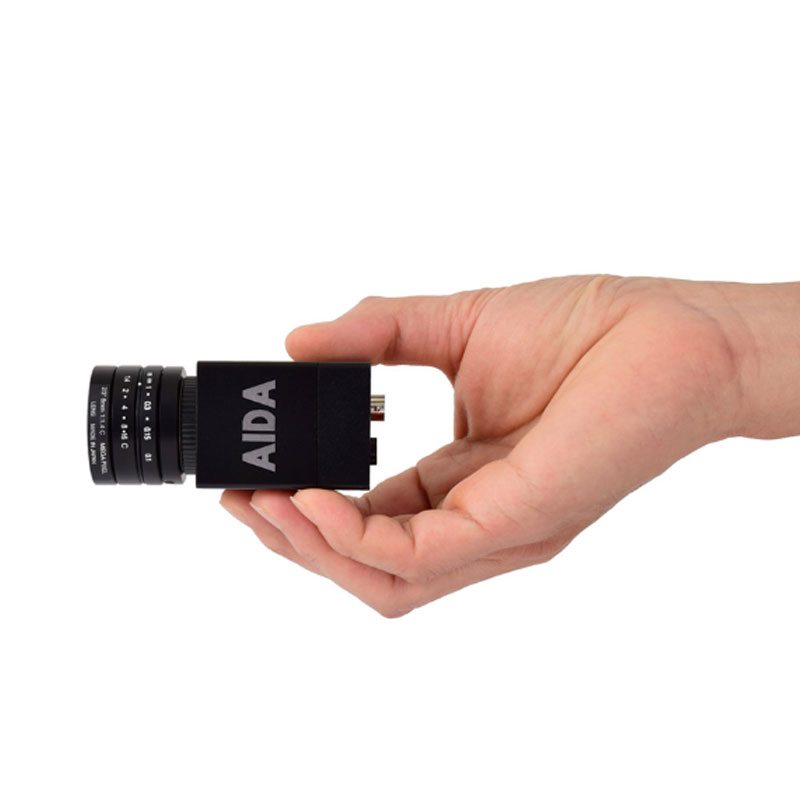

UHD-100A

Micro UHD HDMI POV Camera

Micro UHD 4K HDMI POV Camera – The World’s Smallest and Cost-Effective 4K POV Camera

The UHD-100A is the world’s most cost-effective 4K POV camera solution. With its 4K UHD Progressive Scan CMOS sensor and Digital Image Processor, the UHD-100A produces detailed videos that are sharp and true to colour, while also being able to utilize Dynamic Range, Adaptive White Balance, and motion-compensated temporal noise reduction filter for reduced noise even under low light conditions.

The UHD-100A features a compact and rugged form factor with interchangeable lens capabilities, making it highly versatile for various video applications.

Key Features

• 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.

• Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.

• Superb motion-compensated temporal noise reduction filter for motion video without blurring.

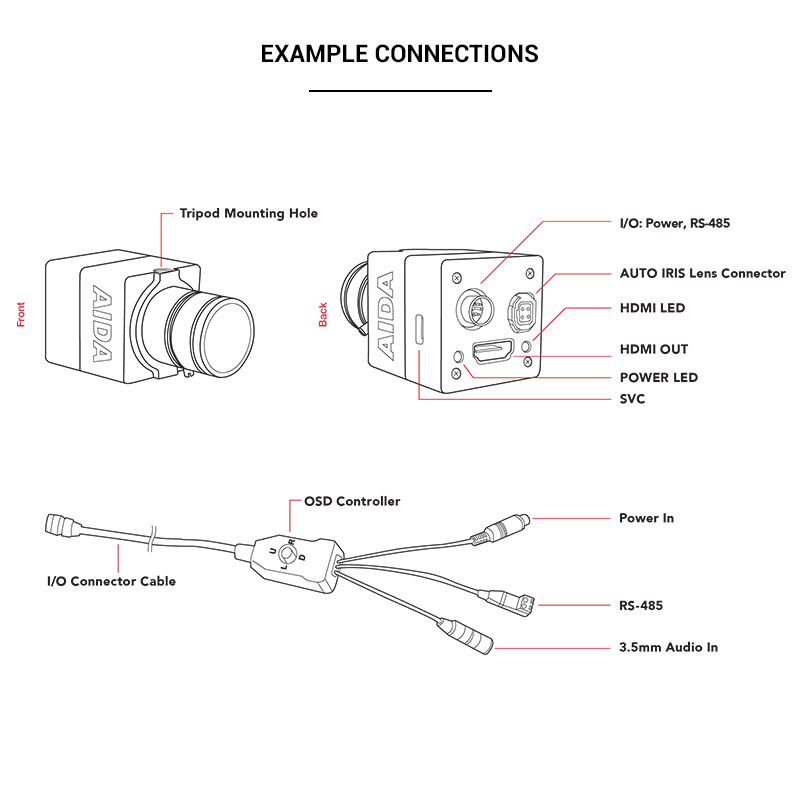

• OSD control breakout cable with power input and RS-485 for remote communication.

• Interchangeable lens design compatible with CS and C mount lenses.

• Perfectly suited for broadcast, pro audio/video, and security.

• Versatile, compact, and rugged design.

• With TRS Stereo Audio Input for embedded audio over HDMI.

Specifications

Video

Image Sensor 1/2.5″ Progressive CMOS
Sensor Size Diagonal 7.20mm
Effective Pixels Horizontal: 3840, Vertical: 2160
Pixel Size 1.62 µm (H) x 1.62 µm (V)
Resolution 2160 30p/29.97p/25p/24p
1080 60p/59.94p/50p/30p/
29.97p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/25p
Output HDMI 1.4
Color Space 4:2:2 (YCbCr) 10bit

Function

White Balance AWB / AE / AF
Exposure Full Auto, Bright, Shutter Priority, Iris Priority, Manual
Other WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,
Digital Slow Shutter, Black Level Compensation, Flicker Detection
