Blackmagic Design

Blackmagic has grown rapidly to become one of the world’s leading innovators and manufacturers of creative video technology.
And that’s because our philosophy is refreshing and simple – to help true creativity blossom.

Blackmagic Design’s founders have had a long history in post-production editing and engineering. With extensive experiences
in high-end telecine, film and post, harnessed with a real passion for perfection,
Blackmagic set out to change the industry forever.

A company dedicated to quality and stability and focusing on where it’s needed most; Blackmagic has created
some of the most talked-about products in the industry. World-famous for their unbeatable codecs, Blackmagic
envisioned truly affordable high-end quality editing workstations built upon Blackmagic software and hardware.

“Blackmagic Design is dedicated to allowing the highest quality
video to be affordable to everyone, so the post-production
and television industry can become a truly
creative industry.” Grant Petty-CEO.

In November 2002, Blackmagic launched the DeckLink capture card and in doing so single-handedly made
working in true 10-bit uncompressed video on a Macintosh OS X™ system an affordable reality. The DeckLink card
has become a market-leading product due to Blackmagic Design’s philosophy of delivering “whatever it takes to give
creative editors and designers the very best quality tools”.

Join the Africa User Group on Facebook

null
null
null
null
null
null
null

Everything you need for Digital Film Production

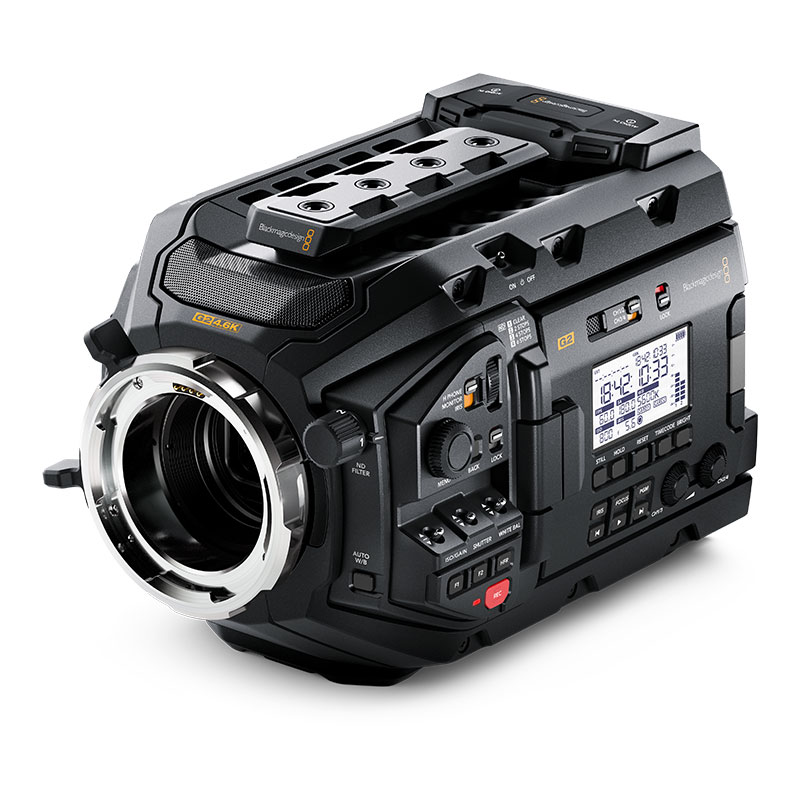

Blackmagic URSA Mini Pro
4.6K G2

Next-generation URSA Mini Pro with Super 35 4.6K HDR sensor, 15 stops of dynamic range and high frame rate shooting up to 300 fps.

Blackmagic URSA Mini Pro 4.6K G2

• Digital film camera available with EF, PL, F or B4 mount.
• New 4.6K Super 35mm HDR sensor designed for high frame rates.
• Perfect for film, television, commercial and independent production.
• Blackmagic RAW recording to SD/UHS-II, CFast, or external USB-C disks.
• External controls, 4″ foldout touch screen, USB-C expansion port, pro audio.

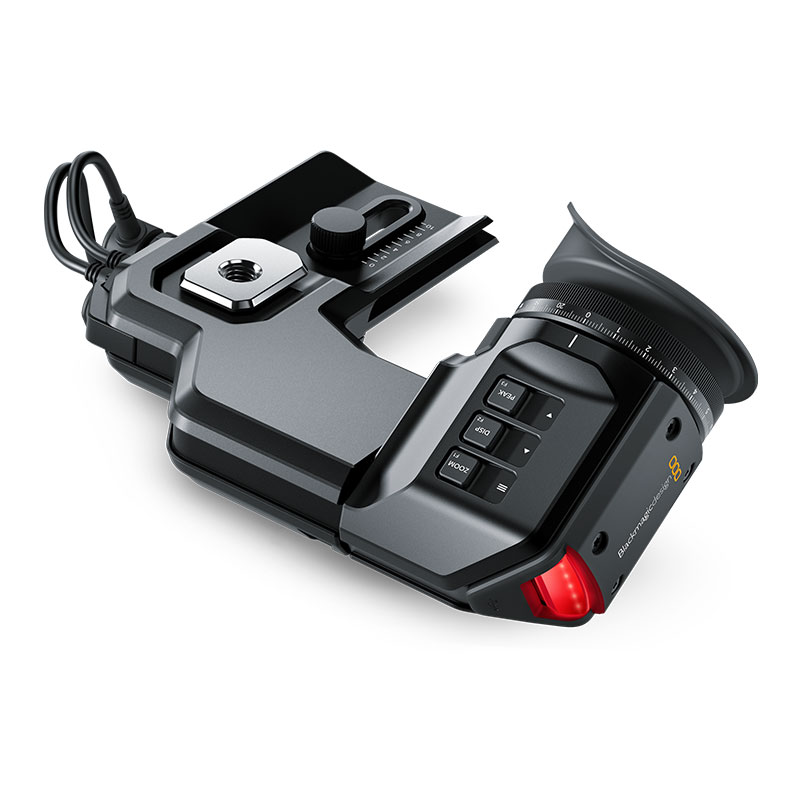

Blackmagic URSA
Viewfinder

High resolution viewfinder for URSA Mini cameras includes full 1080HD OLED display and precision glass optics for perfect focus.

Blackmagic URSA Viewfinder

• High resolution electronic viewfinder.
• Optical quality 1920×1080 display.
• Ideal for handheld over the shoulder shooting.
• High precision glass optics and color display.
• Tally indicator, on screen menus, standard SDI and power.

DaVinci Resolve
Studio 16

Hollywood tools for professional editing, colour correction, audio post, visual effects and multi-user
collaboration!

DaVinci Resolve Studio 16

• High end software for editing, colour correction, audio post and VFX.
• New cut page designed for editors working on high end, fast turn work.
• Multi-user collaboration allows simultaneous work in the same project.
• Professional features with dozens of filters, effects, 3D, HDR and more.
• 8K editing, neural engine with face recognition and GPU scopes.

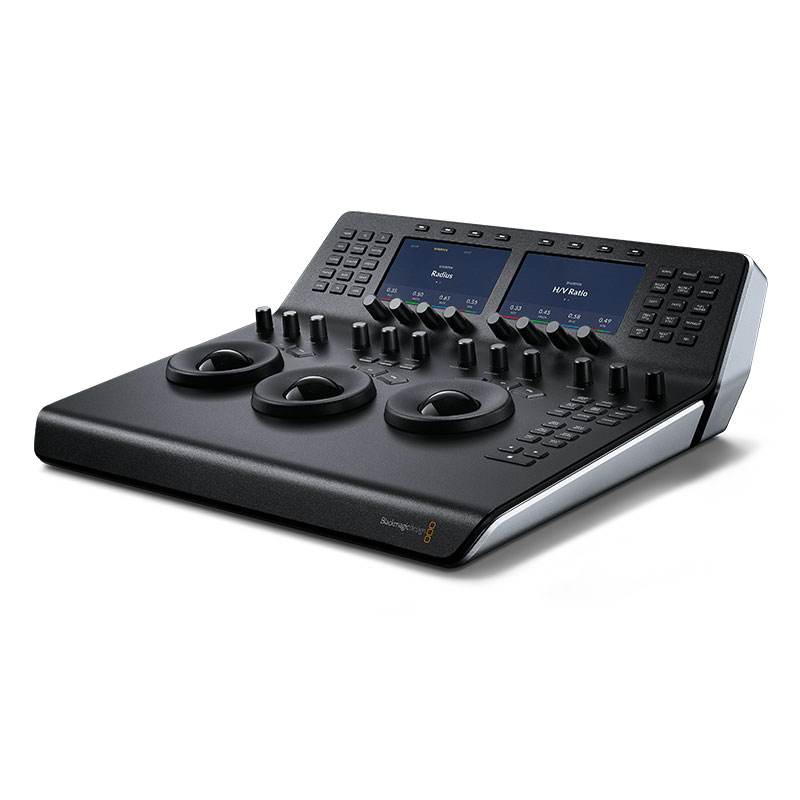

DaVinci Resolve
Mini Panel

High quality control panel with three track balls, two display screens plus control buttons and knobs for switching tools, adding colour correctors and more.

DaVinci Resolve Mini Panel

• Compact, high quality panel for creating unique colour looks.
• High resolution trackballs, professional weighted knobs and buttons.
• Ideal for editors and colourists switching between editing and grading.
• Adjust multiple parameters at once to easily create complex looks.
• Dual LCD screens, navigation buttons, primary controls and more.

Broadcast and Live Production Cameras

Build a complete Studio Camera Chain

Blackmagic URSA
Broadcast

Advanced HD and Ultra HD broadcast camera with extended video dynamic range, ND filters, B4 mount, external controls and more!

Blackmagic URSA Broadcast

• Professional broadcast camera for HD and Ultra HD.
• Works with B4 lenses and batteries you already own.
• Perfect for field ENG work or as a studio camera.
• Record onto standard SD, UHS-II or CFast 2.0 cards.
• 2/3″ 4K sensor, B4 mount, ND filters, broadcast controls.

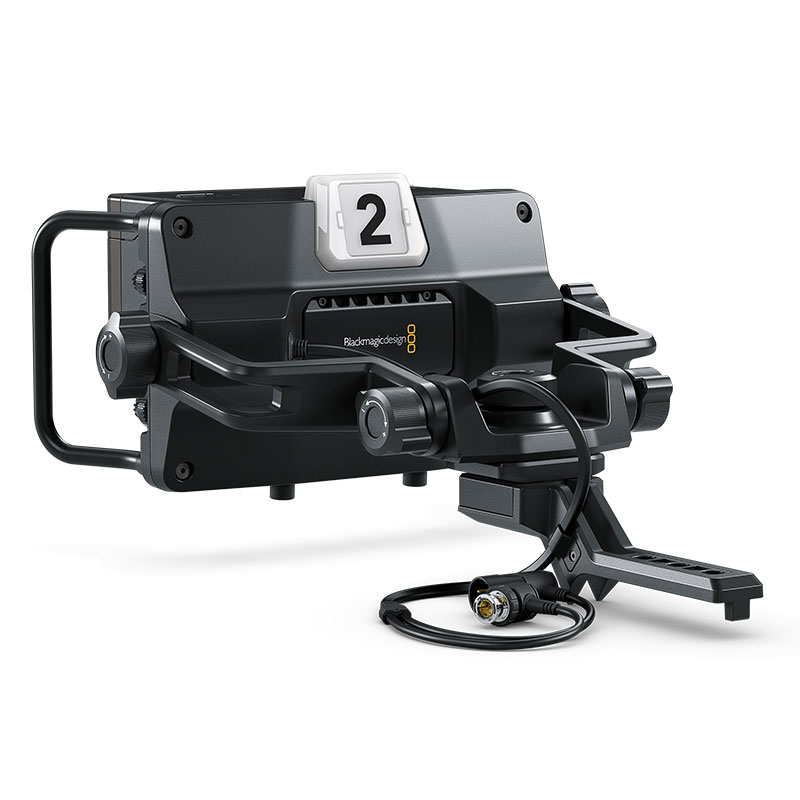

Blackmagic URSA
Studio Viewfinder

Professional studio viewfinder for URSA Mini cameras, perfect for live
production use!

Blackmagic URSA Studio Viewfinder

• Professional 7″ studio viewfinder.
• Large handles and articulated mount.
• Tally light, control knobs, function buttons.
• Perfect for studio or events.
• Includes V-Lock plate.

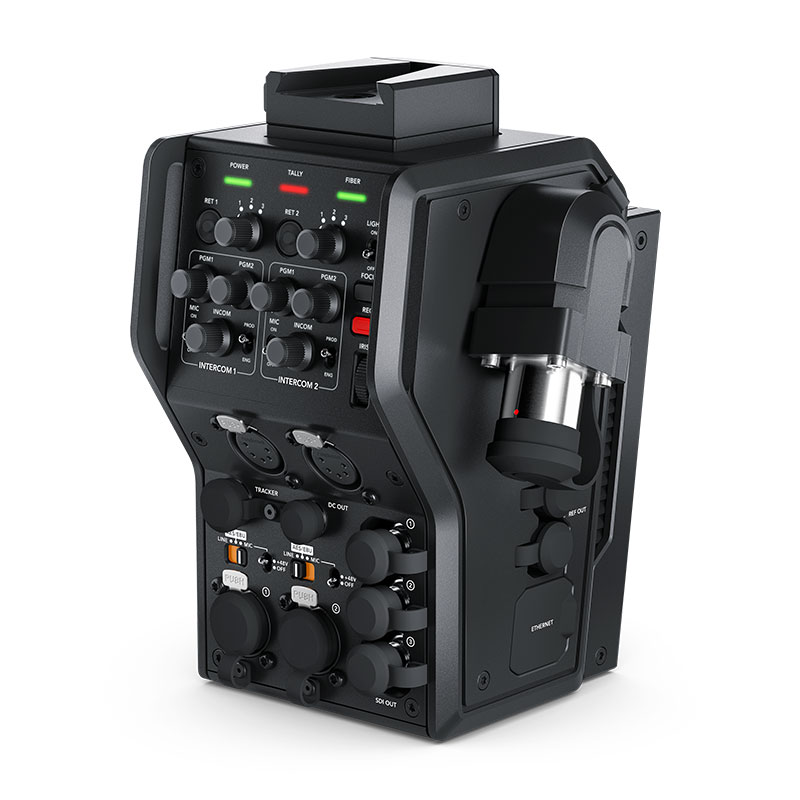

Blackmagic Camera
Fibre Converter

Connect and power cameras up to 2 km away with video, talkback, control and power, all over a single SMPTE
fibre cable!

Blackmagic Camera Fibre Converter

• Connects camera to switchers up to 2km away via SMPTE fibre.
• Adds studio camera controls to your broadcast camera.
• Use on live productions to place cameras long distances away.
• Supports main Ultra HD camera feed plus 3 HD return feeds.
• 12G-SDI, talkback, return feeds, PTZ, tracker, DC and more.

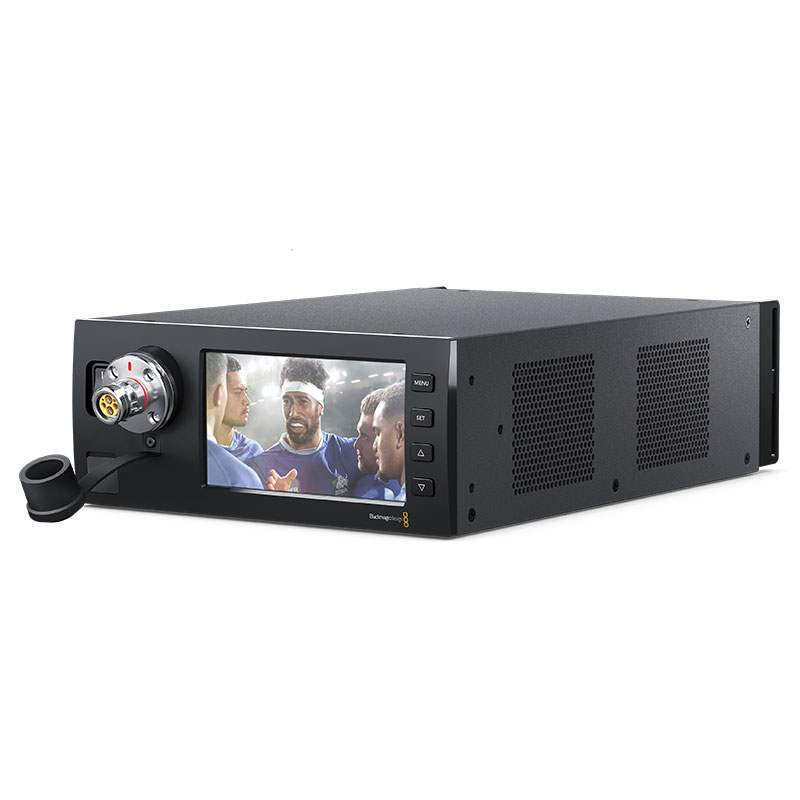

Blackmagic Studio
Fibre Converter

Connect to remote cameras up to 2 km away with multiple channels of video, talkback, control and power all over a single cable!

Blackmagic Studio Fibre Converter

• Extend and power cameras up to 2 km away via SMPTE fibre.
• Converts SMPTE fibre back into standard connections.
• Use on live programs where cameras are far from switcher.
• Uses standard IP link for low latency multi-channel video.
• 5″ screen, standard SMPTE optical fibre, fail safe power.

Ultra HD Live Production Workflow

Get Started with Ultra HD Live Production!

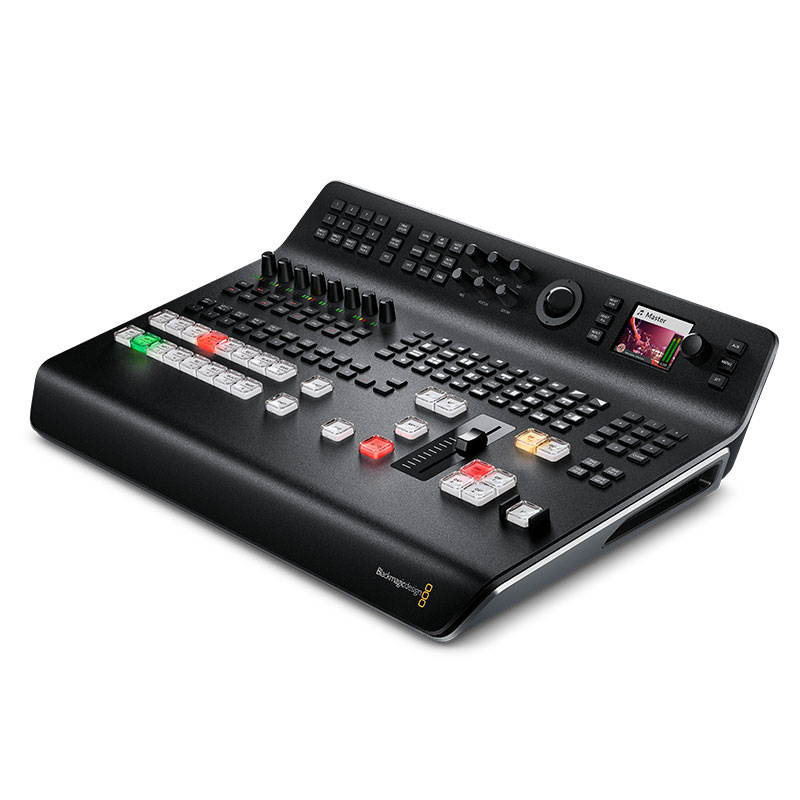

ATEM Television
Studio Pro 4K

New model includes 8 standards converted 12G-SDI inputs, new Fairlight audio mixer, ATEM Advanced Chroma Key and motion media clips!

ATEM Television Studio Pro 4K

• 8 input 12G-SDI all in one live production switcher and control panel.
• Full re-sync and standards converter on every input for mixing formats.
• Designed for broadcast, professional, AV and YouTube live streaming.
• Works in all popular HD and Ultra HD formats up to 2160p60.
• New Fairlight audio mixer, keyers, Ultra HD multi view out, DVE and more.

Blackmagic Studio
Camera 4K

12G-SDI broadcast camera for live production with 10″ viewfinder, MFT lens mount and support for up to 2160p60.

Blackmagic Studio Camera 4K

• Ultra HD studio camera with massive built-in 10″ viewfinder.
• 12G-SDI for working up to 2160p60.
• Great all in one Ultra HD camera for live production.
• Unique integrated viewfinder, talkback and tally.
• 4K sensor, MFT mount, 12G-SDI, XLR, tally, talkback.

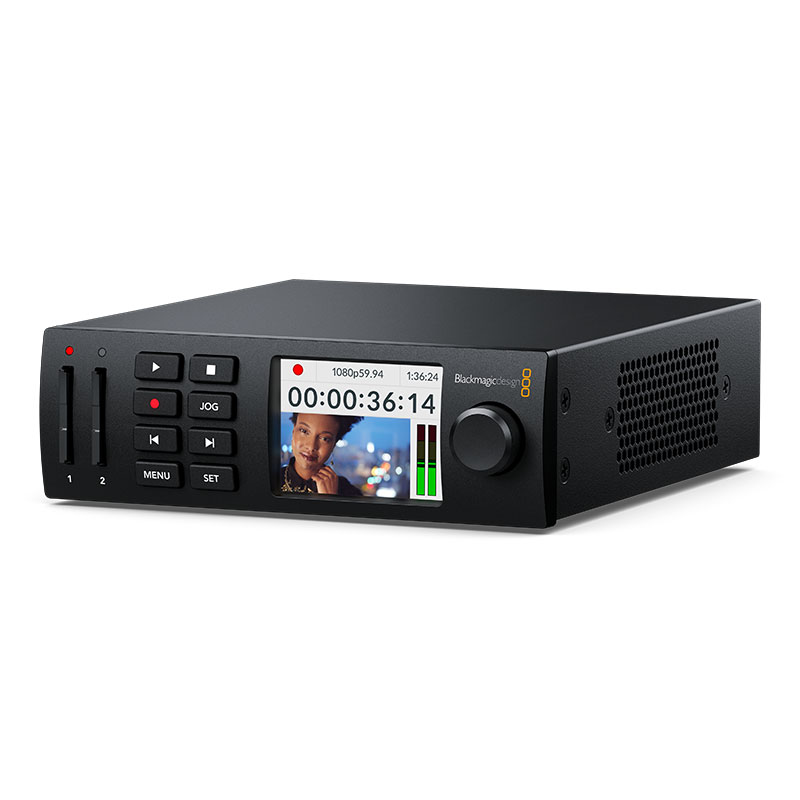

Hyperdeck
Studio Mini

Miniaturized broadcast deck with dual UHS-II SD card recorders for non-stop recording in all formats up to 2160p30!

HyperDeck Studio Mini

• Miniaturized 6G-SDI deck for all formats up to 2160p30.
• Dual SD/UHS-II card slots for non-stop recording.
• Built in LCD, VTR style controls and HDMI monitor out.
• Records broadcast quality 10-bit ProRes and HD H.264.
• ProRes 4:4:4:4 fill and key playback in HD.

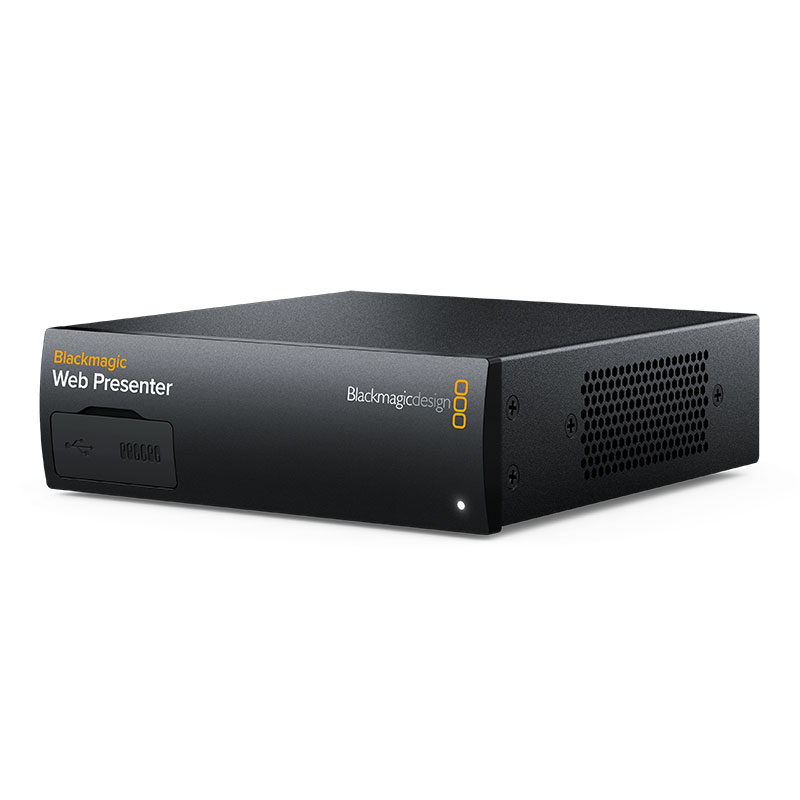

Blackmagic
Web Presenter

Make any SDI and HDMI video source look like a 720p USB webcam for high quality streaming to YouTube, Facebook, Skype and more!

Blackmagic Web Presenter

• Use 12G-SDI and 4K HDMI sources for live web streaming.
• Works with SD, HD and Ultra HD sources up to 2160p60.
• Built-in Teranex processing converts video into 720p HD.
• Connects via USB and looks like a webcam to your computer.
• XLR mic input for lapel or desktop microphones.

8K Live Production

Future proof 8K and 12G-SDI!

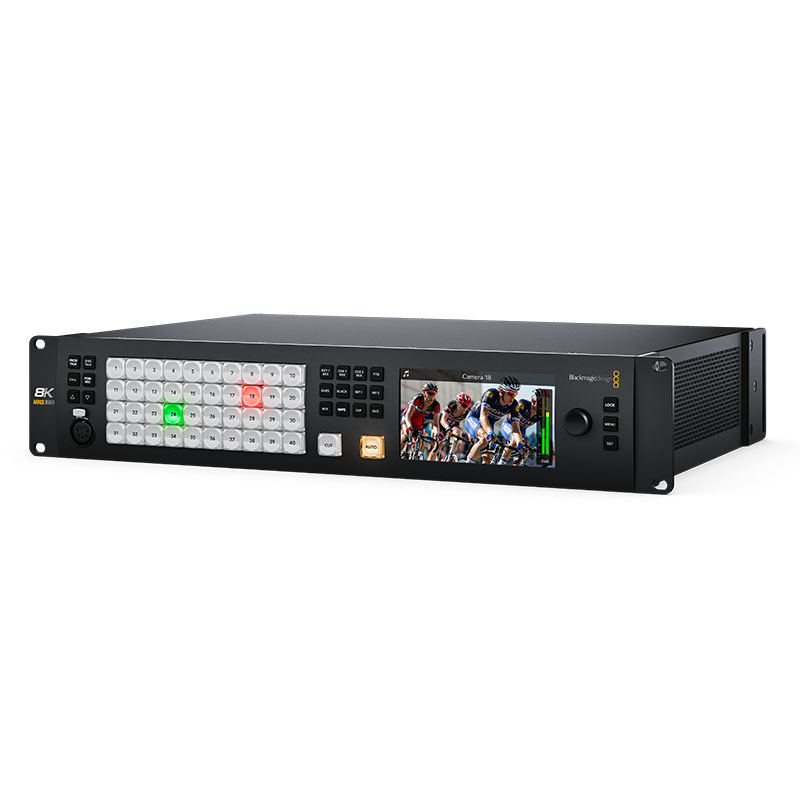

ATEM Constellation 8K

Powerful 8K live production switcher that’s also a massive 4K switcher with 40 12G-SDI inputs, ATEM Advanced Chroma Keyers, DVE, talkback, multi-view, Fairlight audio and more!

ATEM Television Studio Pro 4K

• 40 multi rate 12G-SDI inputs with up and cross converters on all inputs.
• 24 completely independently assignable 12G-SDI outputs.
• Designed for massive live multi-camera programs and events.
• Connect 40 sources up to 2160p59.94 or 10 sources at 8K 4320p59.94.
• 8K transitions, DVE, graphics, talkback, Fairlight audio and more.

ATEM 2 M/E Advanced Panel

The 2 M/E model features 2 M/E rows with 20 input buttons and 2 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers.

Blackmagic Studio Camera 4K

Connections

Ethernet

4 x 10/100/1000 BaseT with loop outputfor additional control panels or computers.

Software Updates

1 x USB-C for firmware updates.

ATEM 2 M/E Advanced Panel

Product Specifics

Number of Mix Effects Rows

2

Direct Cross Points

20

Shifted Cross Points

40

Crosspoint Button Type

Tri-Color LED

Crosspoint Label

6 rows 24 character LCD

Next Transition Selectors

2 x BKG, Key 1 – Key 4.

On-Air indicator

8

Power Status Indicators

None

DSK Transition Selectors

Auto, Cut, Tie/Preview x 2

Preview Transition

2

Transition Rate Displays

Via main menu

LCD Menu Displays

2

Menu Control

20 buttons x 2

Dedicated Macro Buttons

2 x 20

Transport Control Buttons

8

Destination Bus

2

Source Select Bus

2

Fader Bar

2

3 Axis Joystick

1

Numeric Keypad

1

Software

Software Applications

ATEM Software Control Panel.

Operating Systems

Mac iconMac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows IconWindows 10, 64-bit.

Power Requirements

Input Voltage

2 x Internal 100 – 240V AC.

Redundant Power

Yes

Power Usage

150W

Physical Specifications

ATEM 2 M/E Advanced Panel

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

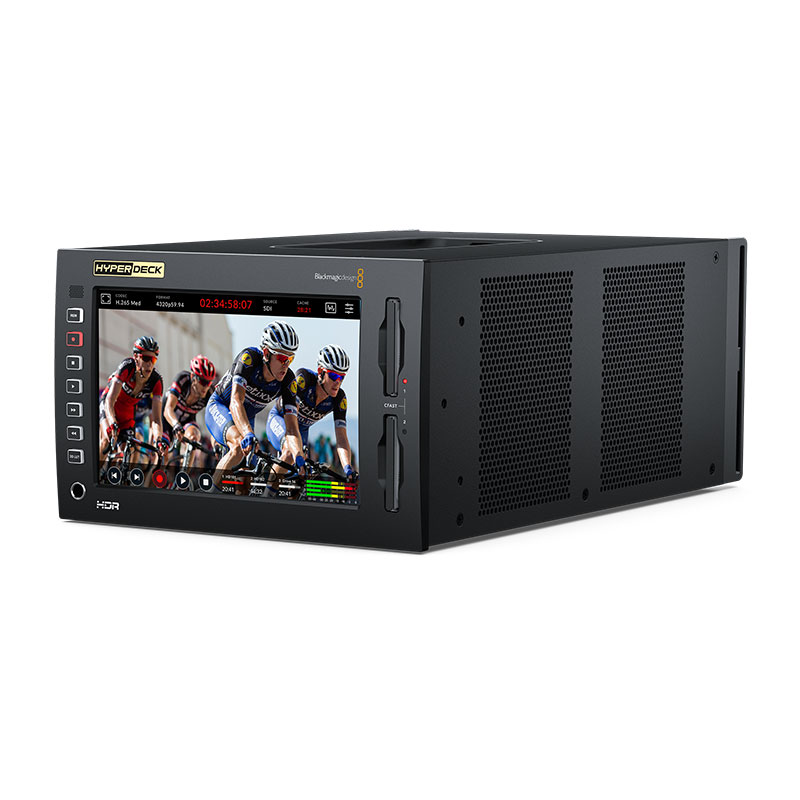

Hyperdeck
Extreme 8K HDR

The world’s first 8K broadcast deck with advanced H.265 recording, touch screen interface, traditional deck style control option and more!

HyperDeck Studio Mini

• Touch screen LCD with on-screen transport controls.
• Add controller with traditional controls and clutch based jog knob.
• Perfect for broadcasters and post facilities, plus can control older decks.
• Record to CFast, SSD with MultiDock 10G, or external USB-C flash disks.
• Quad link 12G-SDI, HDMI and SDI monitoring out, pro audio, RS-422.

Smart Videohub 12G 40×40

Advanced 12G-SDI router supports all SD, HD and Ultra HD SDI video formats simultaneously. Includes spin knob or push-button control, LCD monitoring and Ethernet router control.

Blackmagic Web Presenter

Connections

SDI Video Inputs

40 x 10-bit SD-SDI, HD-SDI and 12G‑SDI.



Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.

SDI Video Outputs

40 x 10-bit SD-SDI, HD-SDI and 12G‑SDI.

SDI Rates

DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.

Video Input Re-Sync

None.

SDI Reclocking

On all SDI outputs.

Reference Inputs

Tri-Sync or Black Burst.

Reference Outputs

Reference terminating loop output.

Control Panel Connection

Ethernet.

Serial Control Connection

DB-9 RS-422.

Multi Rate Support

Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.

Updates

USB

Front Panel Router Control

40 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. RS-422.

Router Configuration

Via front panel LCD or RJ45 Ethernet.

RS-422 Router Control

1 x input for controlling router crosspoint switching.

Smart Videohub 12G 40x40

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p47.95, 1080p48, 1080p50,1080p59.94, 1080p60
1080PsF23,98, 1080PsF24, 1080PsF25,1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI,2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI,2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI,2KPsF29.97 DCI, 2KPsF30 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97,2160p30, 2160p47.95, 2160p48, 2160p50,2160p59.94, 2160p60

4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI,4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI,4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M,SMPTE 372M, SMPTE 424M,SMPTE 425M Level A and B
SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10,ITU-R BT.656 and ITU-R BT.601

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48kHz and 24-bit.

SDI Color Precision

10-bit 4:2:2 and 4:4:4

SDI Color Space

YUV or RGB

SDI Auto Switching

Automatically selects between SD-SDI, HD-SDI, 12G-SDI and DVB-ASI on each input so that each input can be running a different television standard.

SDI Metadata Support

Video payload identification ancillary data as per SMPTE 352M.

Control

Built in Control Panel

40 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 5 inch color display.

External Control Panel

Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.

Software

Software Control

Router control included free for Windows™ and Mac™.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac iconMac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows IconWindows 8.1 and 10.

Display

Displays

Built in 5 inch LCD for video and menu settings.

Power Requirements

Power Supply

2 x Internal 90 – 240V AC. IEC power cables required.

Power Fail Protection

Crosspoint connections preserved and restored instantly at power on.

Physical Specifications

Smart Videohub 12G 40x40

Physical Installation

2 rack unit size. Less than 6 inches deep.

Environmental Specifications

Operating Temperature:

0° to 40° C (32° to 104° F)

Storage Temperature:

-20° to 45° C (-4° to 113° F)

Relative Humidity:

0% to 90% non-condensing

Live Streaming Workflow

ATEM
Mini Pro

Live production switcher designed for live streaming with 4 HDMI inputs, front panel control, transitions, DVE, keyers, full 1080 HD webcam output and more!

ATEM Mini Pro

• Faster Video Production Plus Live Streaming.
• Self Contained Broadcast Quality Switcher.
• Connect up to 4 Independent Cameras.
• Outputs to HDMI Video and USB Webcam.
• Live Stream via Ethernet on ATEM Mini Pro.
• Record Direct to USB Flash Disks with ATEM Mini Pro.
• Automatically Converts Any HDMI Input Format.
• Includes Free ATEM Software Control Panel.
• True Broadcast Style Mix Effects Switching.

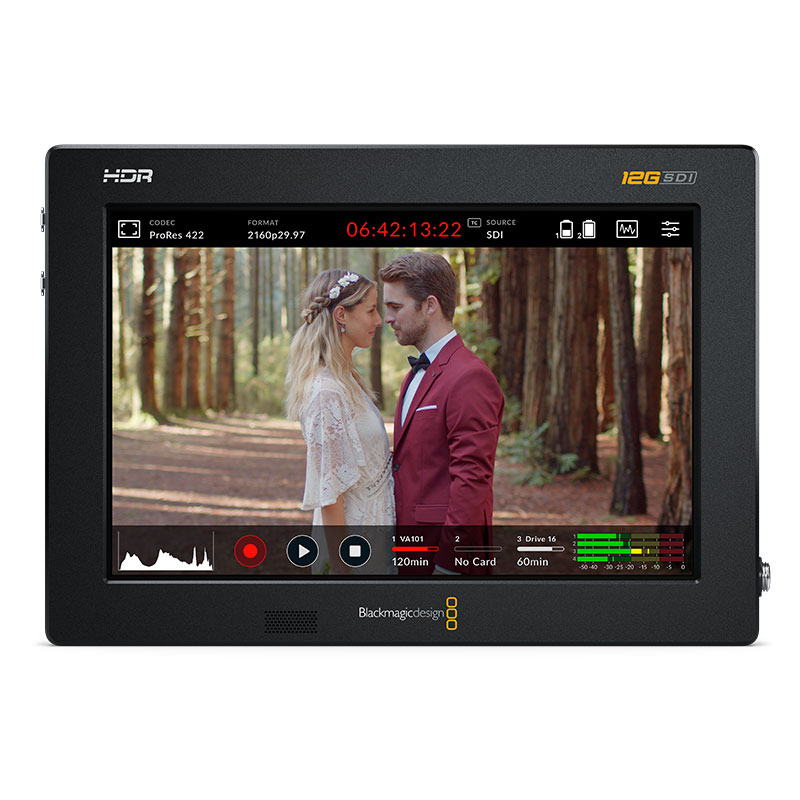

Video Assist
7 inch
12G HDR

Add HDR monitoring, professional scopes and higher quality recording to HDMI or SDI cameras!

Video Assist 7" 12G HDR

• Professional 7″ monitor and recorder for SDI and HDMI cameras.
• Super bright 7″ 2,500 nit HDR touchscreen with overlays.
• Two SD card recorders for ProRes, DNxHD or Blackmagic RAW.
• Histogram, focus peaking, focus assist, on screen status.
• Includes 2 balanced mini XLR for audio recording

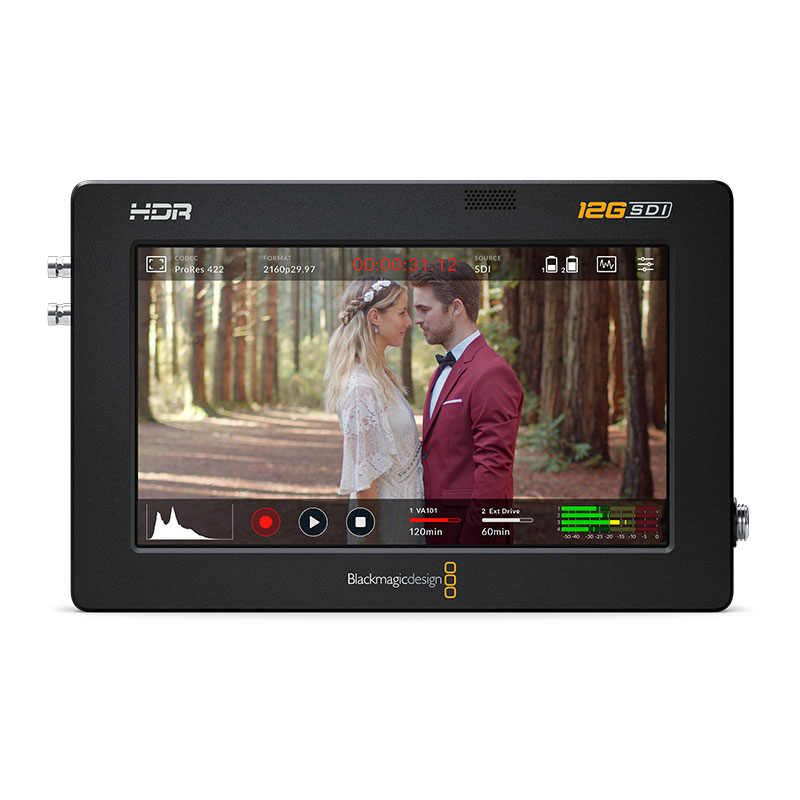

Video Assist
5 inch
12G HDR

Add a 5″ HDR monitor, professional scopes and dramatically better recording to any HDMI or SDI camera!

Video Assist 5" 12G HDR

• Professional 5″ monitor and recorder for SDI and HDMI cameras.
• Super bright 5″ 2,500 nit HDR touchscreen with overlays.
• Perfect as a field monitor and backup recorder.
• Record ProRes, DNxHD or Blackmagic RAW onto SD cards.
• Histogram, focus peaking, focus assist, on screen status.

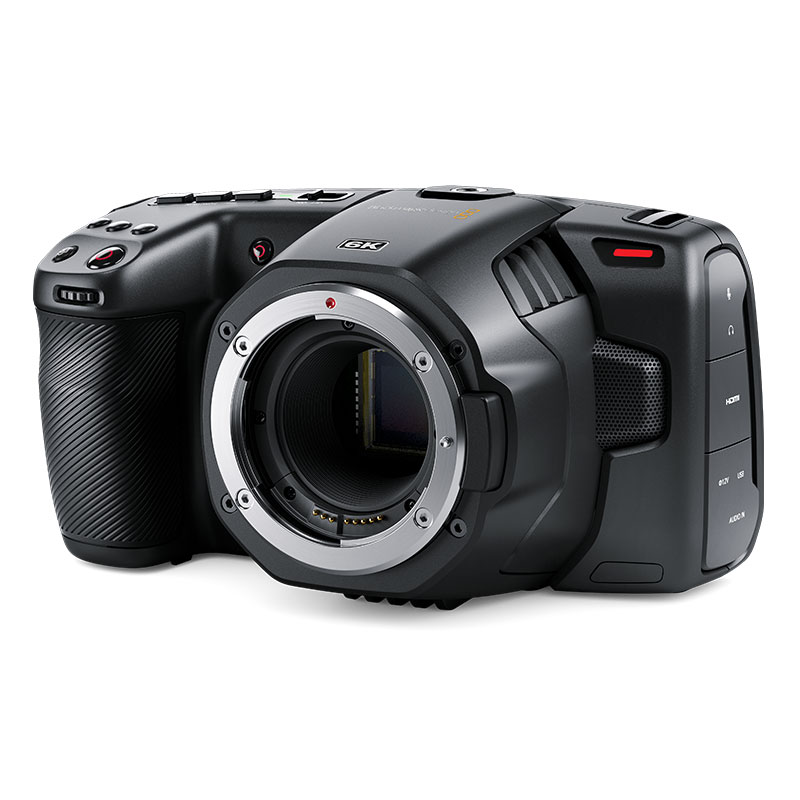

Blackmagic Pocket Cinema Camera 6K

Next generation digital film camera with Super 35 sensor, dual native ISO up to 25,600 and direct recording to USB-C disks.

Blackmagic Pocket Cinema Camera 6K

• Digital film camera with a full Super 35 size 6K HDR image sensor.
• Up to 25,600 ISO and wide dynamic range for true digital film.
• Use for independent films, documentaries, blogs and more.
• Records to SD, UHS-II, CFast 2.0 or external USB-C drives.
• 13 stops dynamic range, EF mount, Blackmagic RAW and touchscreen.

null

What’s the difference between the
ATEM Mini, ATEM Mini Pro and ATEM Mini Pro ISO?

With the launch of the ATEM Mini Pro, Blackmagic Design extends its live HD mixing and streaming systems for social media
creators, video producers and communicators. The ATEM Mini Pro ISO model adds recording of the 4 inputs as clean feeds for editing. Here’s an
overview of the products to enable you to make the right choice.

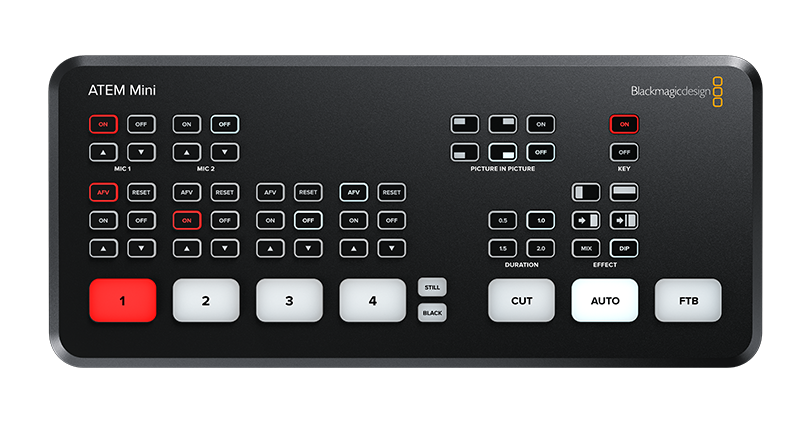

ATEM Mini

ATEM Mini is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.

ATEM Mini Pro

This model includes all the features found in ATEM Mini, plus more! You get recording direct to USB flash disks in H.264 plus direct streaming via the Ethernet to YouTube Live and more. There’s also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.

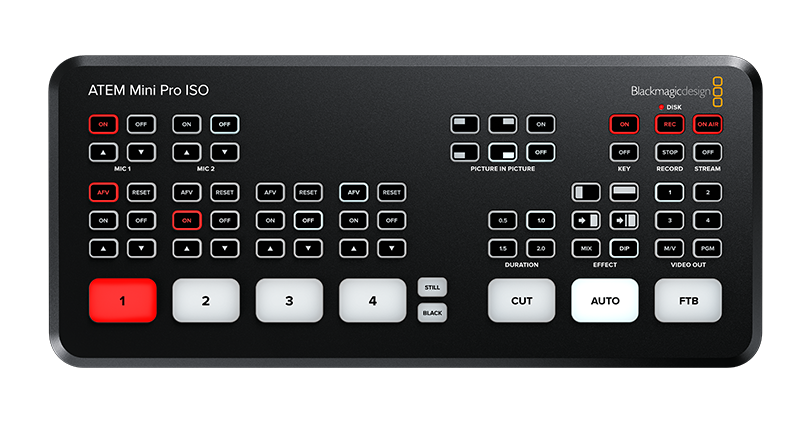

ATEM Mini Pro ISO

This model adds recording of up to 5 separate H.264 video streams in real time! That’s a clean feed of all inputs and plus the live program! A DaVinci Resolve project file is also saved so you can open your live production to adjust edits, change shots, remix audio and add colour correction!

ATEM Mini Comparison
ATEM Mini Atem Mini Pro Atem Mini Pro ISO
ATEM Mini features 4 HDMI inputs. It makes it possible for everyone to live stream multi- camera productions online. All ATEM Mini models have USB that works like a webcam.



You get a built-in DVE for picture-in-picture effects, broadcast quality transitions, upstream keyers for removing green screen background, a downstream keyer for superimposing custom graphics, audio inputs a mixer, and more. There’s also video out, but no option for multi-view.

 The Pro version adds advanced features:



• Direct recording of the program output to USB flash disks in H.264;
• Built in hardware streaming engine for direct live streaming over Ethernet using Real Time Messaging Protocol (RTMP);
• Multiview option;
• Support for the ATEM Streaming Bridge (RTMP decoder).

 Adding to the features of the Mini Pro model, the Mini Pro ISO version also includes:



• Direct multi-channel recording of the program output and each of the 4 HDMI inputs as clean feeds to USB flash disks in H.264 format;
•  DaVinci project file for fast edit turnaround.

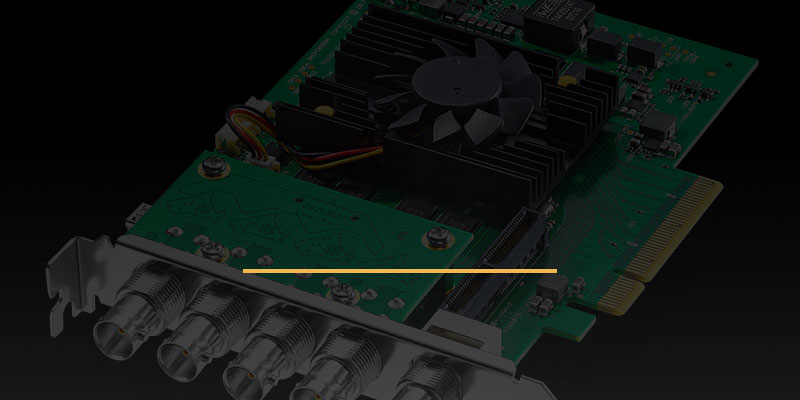

Capture and Playback

UltraStudio 4K Mini

Portable capture and playback solution for Thunderbolt 3 computers with 12G-SDI, HDMI, analog video and audio connections!

UltraStudio 4K Mini

• Thunderbolt 3 interface for 40 Gb/s capture and playback.
• Front panel with LCD, mic input, headphone and SD card slot.
• Ideal for edit monitoring, live graphics, archive and streaming.
• Compatible with DaVinci Resolve for editing, color, VFX and audio.
• Supports all SD, 720p, 1080i, 1080p, 2160p and 4K DCI formats.

DeckLink 8K Pro

High resolution 8K capture and playback card that also features multi channel support in all formats up to Ultra HD and 4K.

DeckLink 8K Pro

• Most advanced 8K capture and playback card.
• Quad Link 12G SDI works in SD, HD, Ultra HD, 2K, 4K and 8K DCI.
• Perfect for high end broadcast and digital cinema workflows.
• Multi channel capture and playback of up to 4 streams in any format up to 4K DCI 60p.
• Advanced 8 lane PCI Express, 10-bit YUV, 12-bit RGB, Rec. 2020.

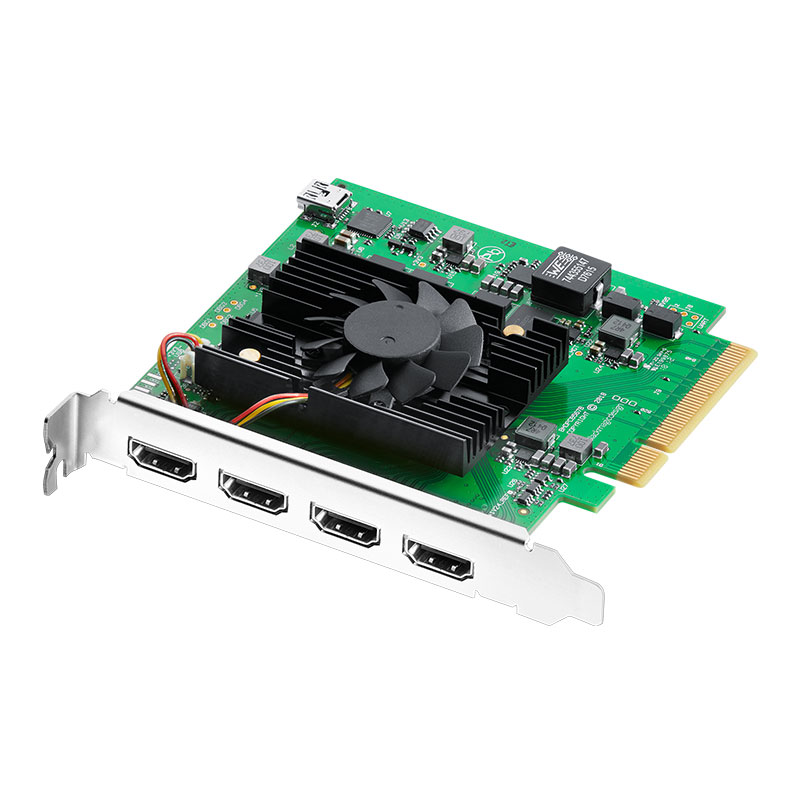

DeckLink Quad HDMI Recorder

PCIe capture card with 4 HDMI inputs for capturing up to 4 different SD, HD, Ultra HD and 4K formats at the same time!

DeckLink Quad HDMI Recorder

• 4 independent HDMI 2.0b video inputs
• High performance PCI Express 8 lane generation 3 card.
• Ideal for streaming solutions, broadcast servers, software production switchers.
• Supports all SD, HD, Ultra HD, 4K DCI and DVI formats up to 60p.
• Capture from computer and gaming console up to 2560 x 1600 at 60p.

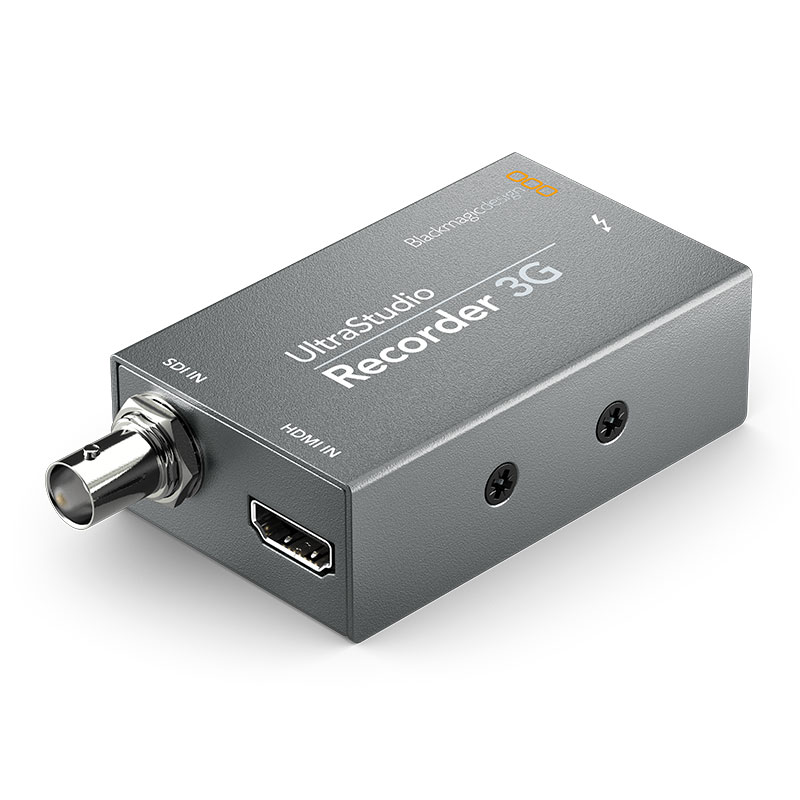

UltraStudio Recorder 3G

The UltraStudio recorder 3G is great for streaming and capture from any HDMI or SDI broadcast-quality video source, UltraStudio Recorder includes 3G-SDI and HDMI in all formats up to 1080p60.

UltraStudio Recorder 3G

Connections

SDI Video Inputs

1

SDI Rates

270Mb, 1.5G, 3G

SDI Audio Inputs

16 Channels embedded in SD/HD

HDMI Video Inputs

1

HDMI Audio Inputs

8 Channels embedded in SD/HD

Computer Interface

Thunderbolt™ 3 (Mac OS, Windows and Linux)

UltraStudio Recorder 3G

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software

Software Included

Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

Internal Software Upgrade

Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

Software Applications

WirecastWirecast
vMixvMix
OBSOBS

Other supported applications include:

Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom.

SDI Video Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

SDI Compliance

SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B

SDI Metadata Support

RP 188/SMPTE 12M-2 and closed captioning.

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Video Sampling

4:2:2, 4:4:4

SDI Color Precision

8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.

SDI Color Space

REC 601, REC 709 and REC 2020

Multiple Rate Support

SDI video connection is switchable between SD and HD.

HDMI Video Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HDMI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

HDMI Video Sampling

4:2:2 and 4:4:4

HDMI Color Precision

8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards.

HDMI Configuration

HDMI 2.0a supports Deep Color.

HDMI Color Space

REC 601, REC 709 and REC 2020

Multiple Rate Support

HDMI video connection is switchable between SD and HD.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Hardware Frame Buffer

v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).

Processing

Colorspace Conversion

Hardware based real time.

Physical Installation

Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements.

Physical Specifications

UltraStudio Recorder 3G

Operating Systems

Mac iconMac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows IconWindows 8.1 and 10, both 64-bit.
Linux iconLinux

Power Requirements

Powered by Thunderbolt cable. Requires a computer with a Thunderbolt™ 3 USB-C port.

Environmental Specifications

Operating Temperature

5° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

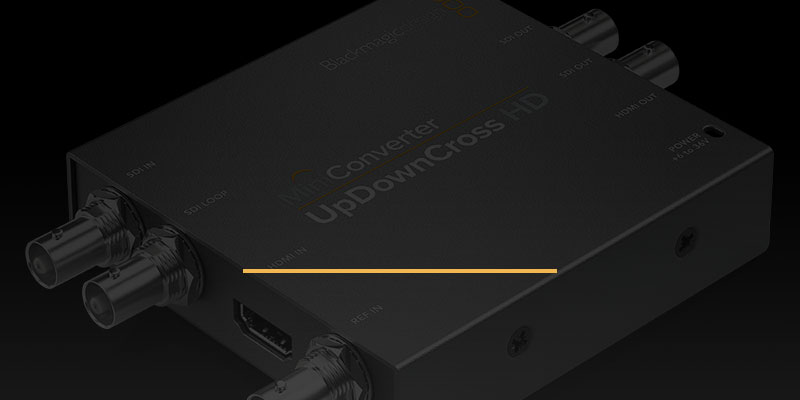

Video and Audio Converters

ATEM Streaming
Bridge

New converter decodes H.264 live stream from ATEM Mini Pro so you can connect direct to any broadcaster, anywhere in the world via the internet!

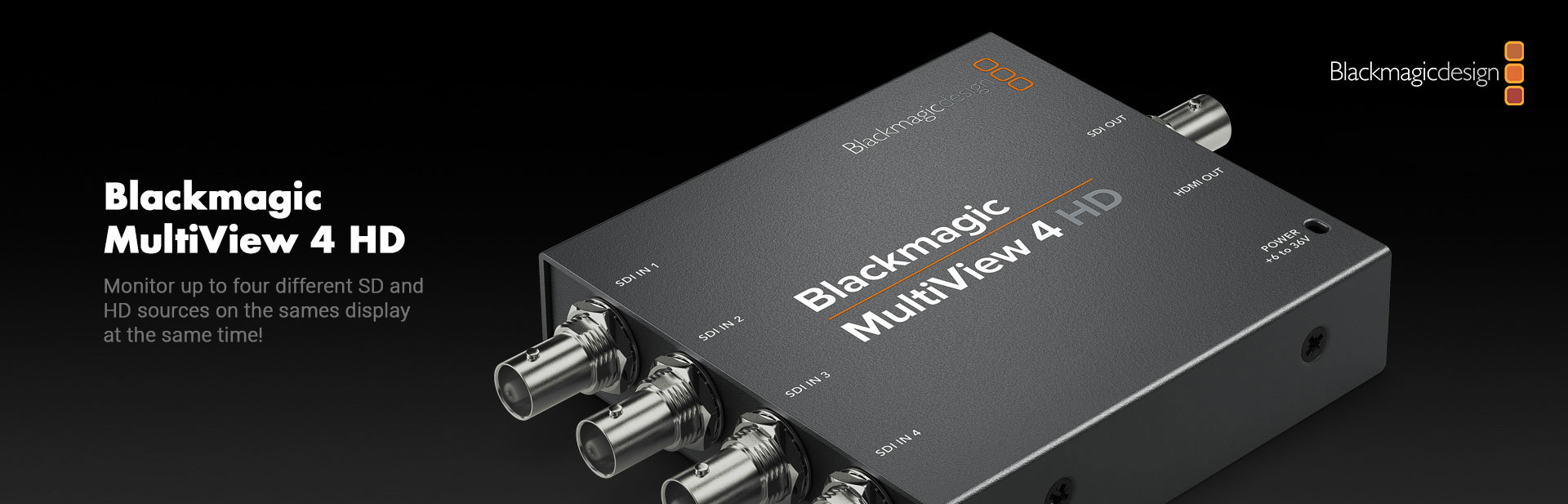

Blackmagic MultiView 4 HD

New video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video so you can send it to remote locations around your local Ethernet network, or via the internet.

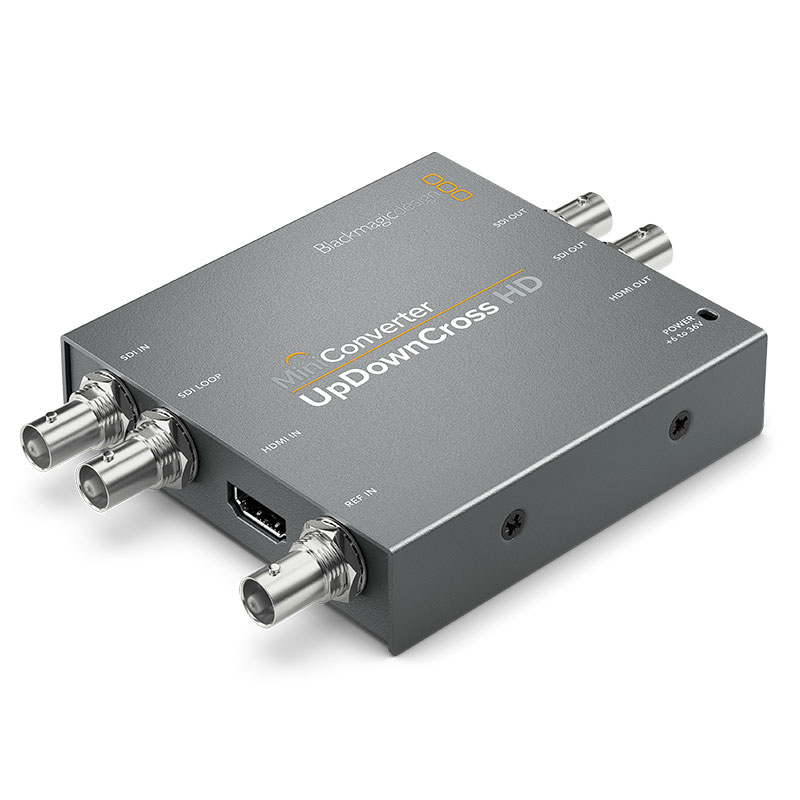

Mini Converter
UpDownCross HD

Full standards conversion from any SD/HD format to any
SD/HD format!

Mini Converter UpDownCross HD

• Great for connecting HDMI computers to SDI
• Up, Down, Cross and Standards conversions
• Both 3G-SDI and HDMI inputs and outputs
• Works with all formats up to 1080p60

Mini Converter
Optical Fiber 12G

Extend SDI connections over extremely long distances by converting
to optical fibre!

Mini Converter Optical Fiber 12G

• Automatically detects all formats up to 2160p60
• Supports adding any SMPTE optical SFP module
• 12G-SDI to optical and optical to 12G-SDI
• Works in both directions simultaneously

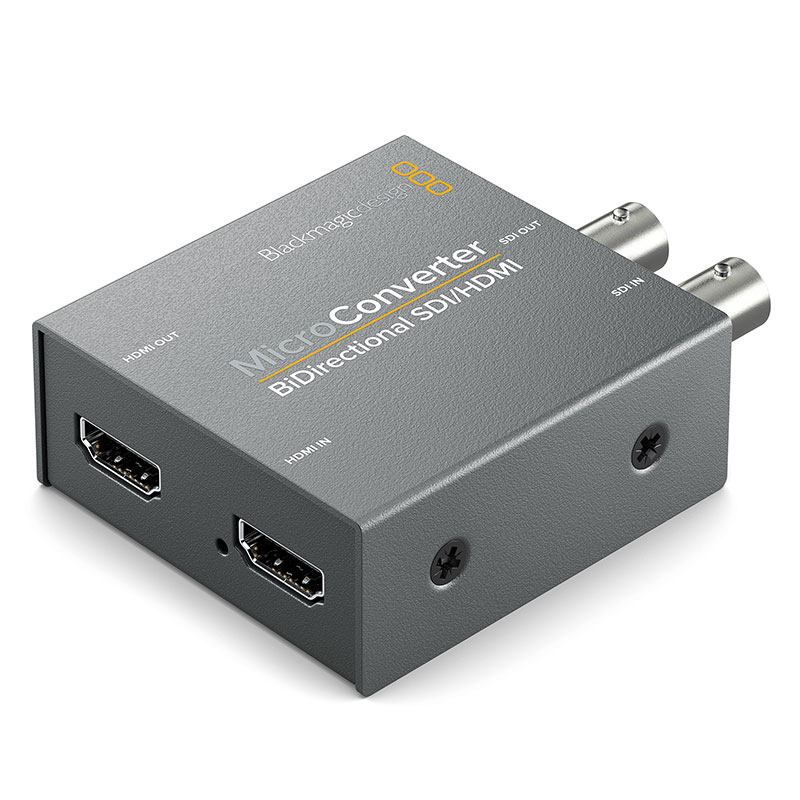

Micro Converter
BiDirectional SDI/HDMI

Simultaneously convert SDI to HDMI and HDMI to SDI in SD or HD formats all at the same time

Micro Converter BiDirectional SDI/HDMI

• Automatically detects all SD and HD formats!
• 3G-SDI works in all formats up to 1080p60
• Convert in both directions independently
• Powers from any USB source

Visit the Blackmagic Website

WEBSITE

Locate your nearest Reseller

RESELLERS
