| Pixel Pitch (mm) | 1.9 | 2.6 | 3.9 |
| Pixel Density (dots/m²) | 262,144 | 147,456 | 65,536 |
| LED Sealing Type | SMD1212/1515 | SMD1515 | SMD2121 |
| Module Resolution (px × px) | 128×144 | 96×108 | 64×72 |
| Module Size (mm × mm) | 250×281.25 | 250×281.25 | 250×281.25 |
| Module Weight | 0.5kg | 0.5kg | 0.5kg |
| Module Thickness | 3mm | 3mm | 3mm |
| Drive Mode | Constant Current | Constant Current | Constant Current |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Brightness | 800 nits | 800 nits | 800 nits |
| Grey Scale | 14 bit | 14 bit | 14 bit |
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz |
| Max Power Consumptions (W/M²) | <500 | <450 | <450 |
| Average Power Consumption (W/M²) | <150 | <135 | <135 |

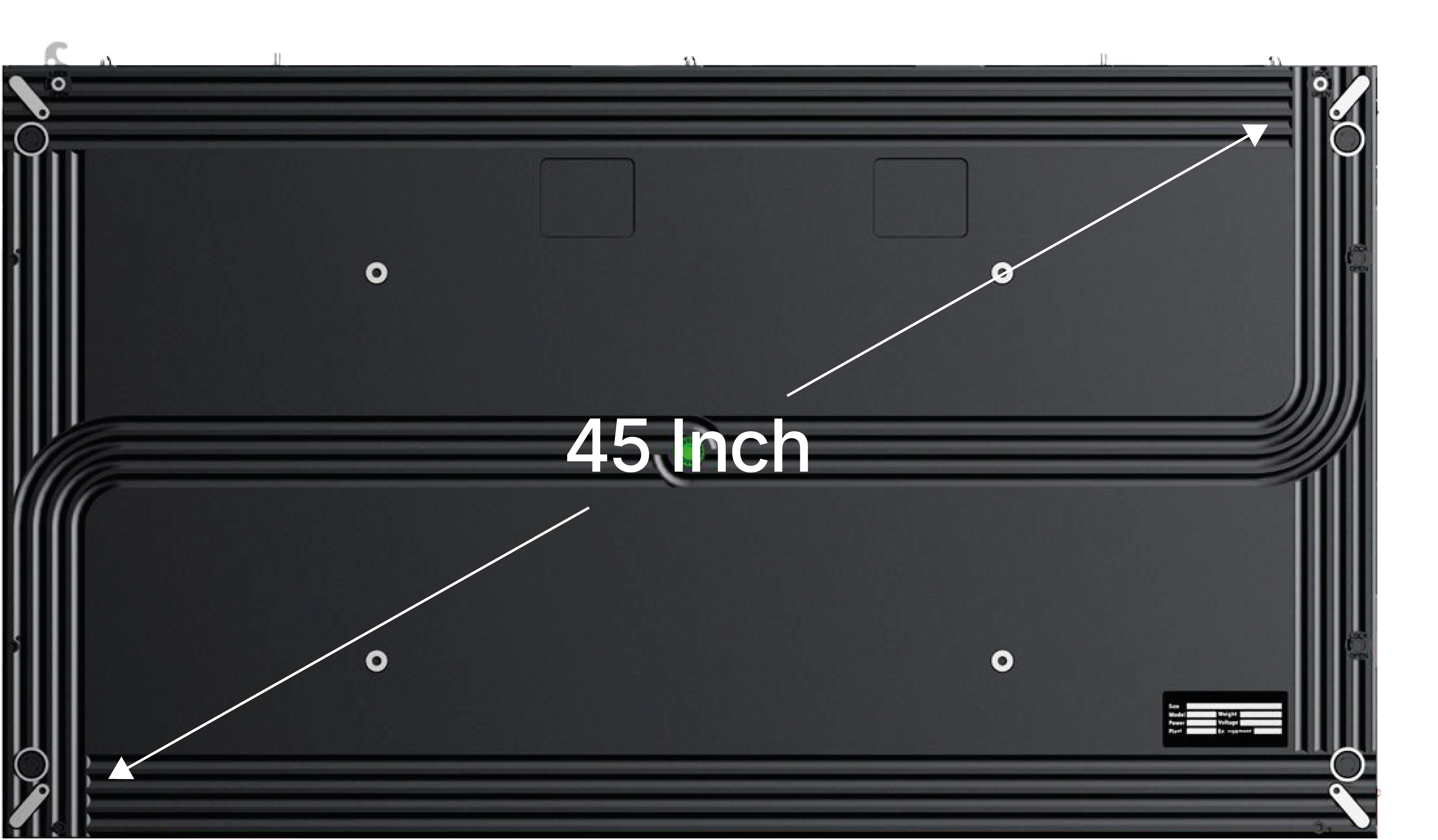

| Cabinet Size | 1000×562.5mm | ||
| Multiple divisible cabinet sizes available on special request | |||
| Cabinet Weight | 1000 x 562.50 (11.7kg) | ||
| Cabinet Thickness | 28.7mm | 28.7mm | 28.7mm |
| Input Voltage | 110-220V / 200-240V | 110-220V / 200-240V | 110-220V / 200-240V |
| Working Temperature | -20~ +50 °C | -20~ +50 °C | -20~ +50 °C |
| Storage Temperature Range | -40~ +80 °C | -40~ +80 °C | -40~ +80 °C |
| Operation Humidity | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH |
| Ingress Protection | IP20 | IP20 | IP20 |
| Working Environment | Indoor | Indoor | Indoor |
| Maintenance Type | Front | Front | Front |
| Certificates | CE (VLD, EMC), CB, ETL | CE (VLD, EMC), CB, ETL | CE (VLD, EMC), CB, ETL |
TrueRatio
Always 16:9. Any size. Any venue.

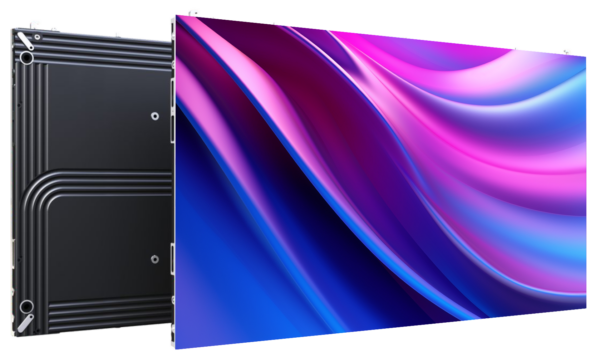

Introducing PixelPlus TrueRatio
Where every display perfectly matches your content.
TrueRatio is engineered around the 16:9 “golden” aspect ratio, ensuring presentations, camera feeds, and video content display exactly as intended. Eliminate cropping, letterboxing, and awkward scaling while maintaining perfect framing, even as the LED wall is expanded to suit different venues, screen sizes, and audience sightlines. Every image remains crisp, balanced, and true to its original format.
Forget irregular panel layouts and non-standard aspect ratios. Built on a sleek 28.5 mm ultra-thin cabinet with full front installation and service access, TrueRatio delivers dependable performance with built-in redundancy for everyday reliability. Create a seamless LED canvas that naturally matches modern 16:9 content, providing a polished, professional viewing experience in every installation.
Bring your content to life on a LED canvas that natively matches the way it was created.

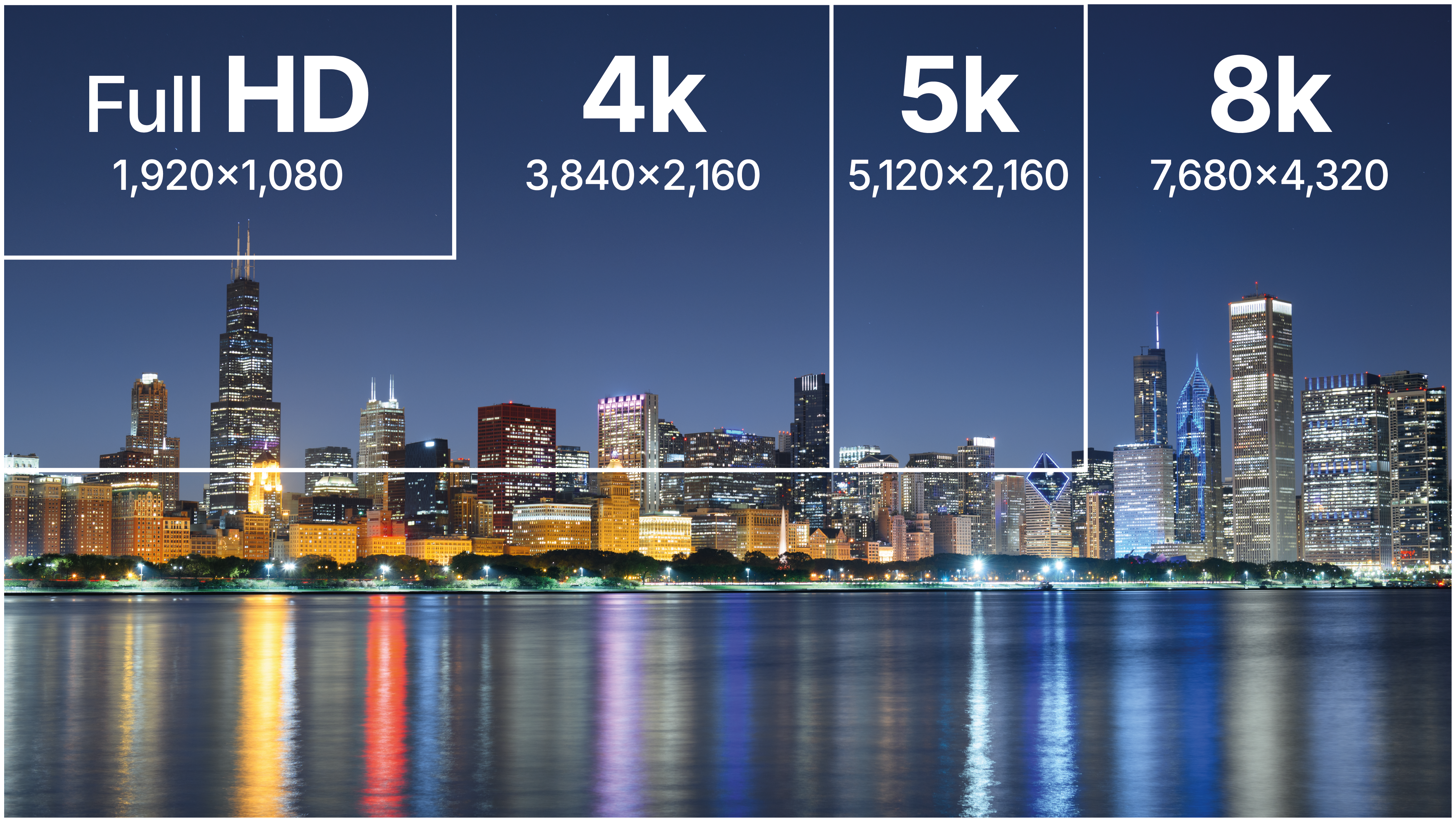

Native 16:9 Performance & Visual Integrity
PixelPlus TrueRatio respects the frame your content was designed for: 16:9, every time. Designed for worship, education, corporate, and civic spaces, TrueRatio scales to your room while maintaining a native 16:9 canvas for slides, video, and live camera feeds. Choose the 3.9mm pixel pitch option to balance crisp legibility with streamlined signal processing, delivering reliable visuals and daytoday simplicity for fixed indoor installations.
This native mapping reduces the need for scaling, preserving image sharpness, colour integrity, and motion smoothness from source to display. For applications such as live IMAG, corporate communications, and educational content, this ensures that slide layouts, lower-thirds, and camera framing appear exactly as planned, avoiding layout compromises and operator workarounds.

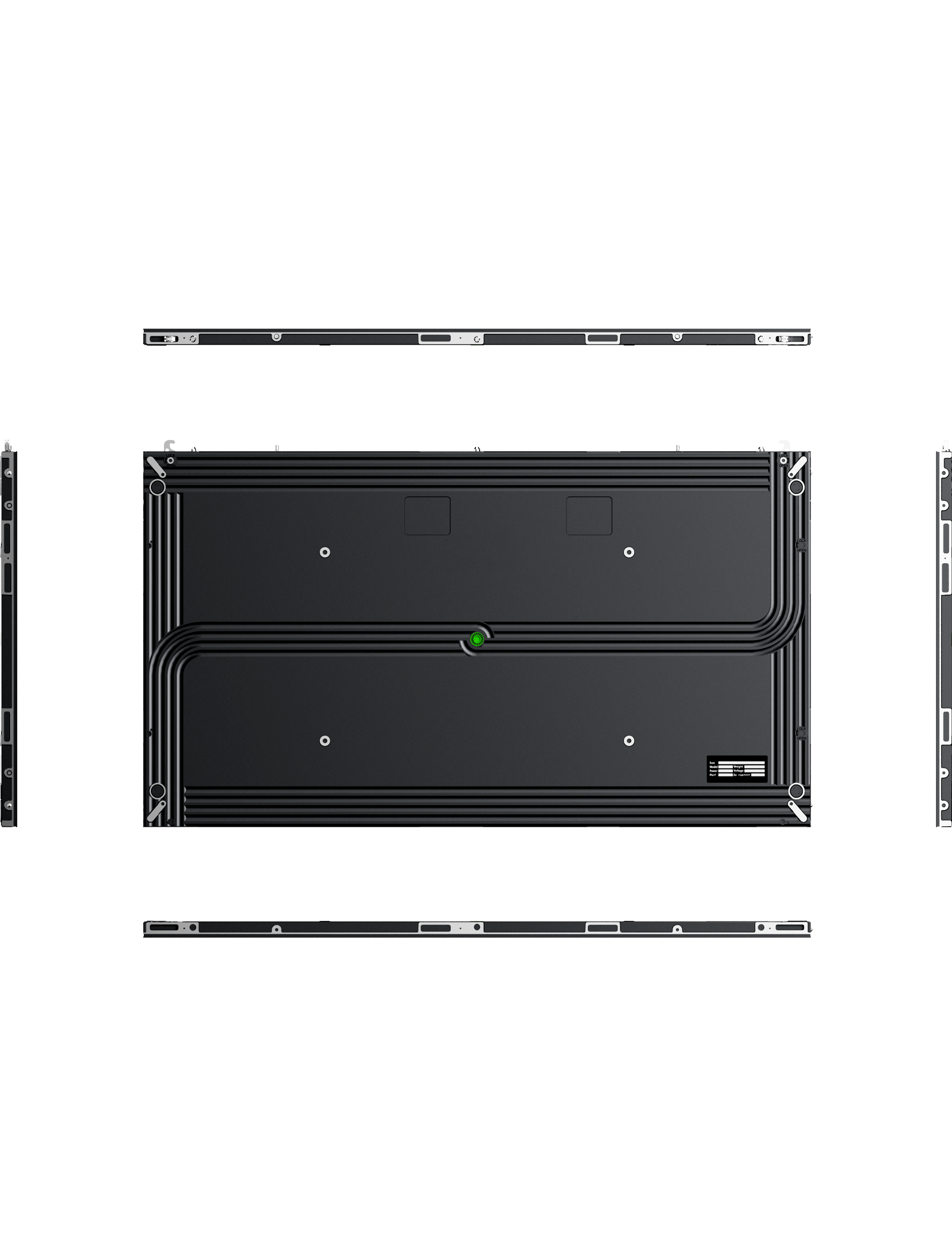

Full Front Install & Serviceability
At just 28.5 mm thick, the cabinets support full front installation and service, reducing structural depth requirements and enabling mounting in tight architectural spaces without rear access. Combined with power and signal redundancy and universal HUB cards across all supported pixel pitches, TrueRatio is suitable for daily-use fixed installations that demand uptime and efficient serviceability.
Wall-mounted
Ground-stacked
Truss-rigged
Installation Scenarios
With a cabinet thickness of 28.5 mm and front-installation capability, TrueRatio is well suited to wall-mounted, ground-stacked, and truss-rigged installations where structural depth and service access are constrained. The hard-connection design between modules and power supplies minimises cable clutter and potential points of failure, simplifying assembly and improving long-term mechanical reliability.
Typical application environments include houses of worship, control centres, conference rooms, shopping malls, showrooms, chain stores, airports, stations, as well as civic spaces that require consistent visual communication. Indoor-rated ingress protection and certified compliance (including CE, CB, and ETL on the base platform) support deployment in professional environments with defined safety and performance standards.
Choose Your Clarity by Audience Distance.
PixelPlus TrueRatio offers a focused pixel pitch range from 1.9 mm to 3.9 mm, allowing technical teams to match resolution, cost, and processing requirements to room size and use case.
1.9 mm Pixel Pitch
Balanced Detail.
Designed for spaces where viewers are typically around 6m from the screen, 1.9 mm provides fine detail for text-heavy content and graphics while maintaining sensible cost and power profiles. This pixel pitch is ideal for boardrooms, control rooms, and premium presentation spaces requiring outstanding clarity and everyday performance.
Viewing Distance: 2 to 4m
2.6 mm Pixel Pitch
Cost-Smart Clarity.
Optimized for typical viewing distances around 8m, 2.6 mm balances pixel density against budget, making it suitable for larger rooms, conference spaces, and public environments that need clarity without over-investing in ultra-fine pitch. This versatile option delivers reliable performance for a wide range of professional indoor applications.
Viewing Distance: 2.5 to 5.2m
3.9 mm Pixel Pitch
Venue-Wide Visibility.
For audiences at approximately 12 m and beyond, 3.9 mm delivers clear, legible visuals across wide seating areas while keeping signal processing requirements streamlined. This pitch is ideal for worship venues, auditoriums, and civic spaces that prioritise robust, day-to-day operation over extreme pixel density.
Viewing Distance: 4 to 8m
Control & Compatibility
Our displays are fully validated with NovaStar A-Series receiving cards to ensure reliable, high-performance operation. They integrate seamlessly with NovaStar processors, controllers, and standard industry workflows, providing smooth configuration, mapping, monitoring and flexible control options, and dependable compatibility whether deploying simple single-wall systems or more complex multi-display environments.
The underlying cabinet platform supports both power and signal redundancy, with main and backup power supplies and receiving/HUB card configurations designed to maintain operation in the event of component failure. Front-service access to modules, HUB cards, and power supplies further reduce repair time, enabling maintenance without disturbing the wall structure or rear access.
TrueRatio
Perfect framing at any size, in any space.
For technical teams, TrueRatio offers a premium yet predictable, native 16:9 LED platform with defined pixel pitches, validated control hardware, and a mechanically efficient front-service design-built for reliable visuals and day-to-day simplicity in fixed indoor installations.
