| Pixel Pitch (mm) | 1.9 | 2.6 |
| Pixel Density (dots/m²) | 262,144 | 147,456 |
| LED Sealing Type | Mini 4-in-1 | Mini 4-in-1 |
| Module Resolution (px × px) | 128 × 128 | 96 × 96 |
| Module Size (mm × mm) | 250 × 250 | 250 × 250 |
| Module Weight | 0.65kg | 0.65kg |
| Module Thickness | 22mm | 22mm |
| Drive Mode | Constant Current | Constant Current |
| Horizontal Viewing Angle | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° |
| Brightness | 1,300–1,500 nits | 1,300–1,500 nits |
| Grey Scale | 16 bit | 14/16 bit |
| Refresh Rate | 3,840 / 7,680 Hz | 3,840 / 7,680 Hz |
| Max Power Consumption (W/m²) | <500 / <560 | <500 / <570 |
| Average Power Consumption (W/m²) | <150 / <168 | <150 / <170 |
| Cabinet Size | 500 × 500mm | 500 × 500mm |
| Cabinet Weight | 7.8kg | 7.8kg |
| Cabinet Thickness | 80mm | 80mm |
| Input Voltage | AC110–220V | AC110–220V |
| Working Temperature | -20 ~ +50°C | -20 ~ +50°C |
| Operation Humidity | 10%–90% RH | 10%–90% RH |
| Ingress Protection | IP20 | IP20 |
| Working Environment | Indoor | Indoor |
| Maintenance Type | Front / Rear | Front / Rear |
| Certificates | CE (LVD, EMC), FCC, ETL, CB | CE (LVD, EMC), FCC, ETL, CB |

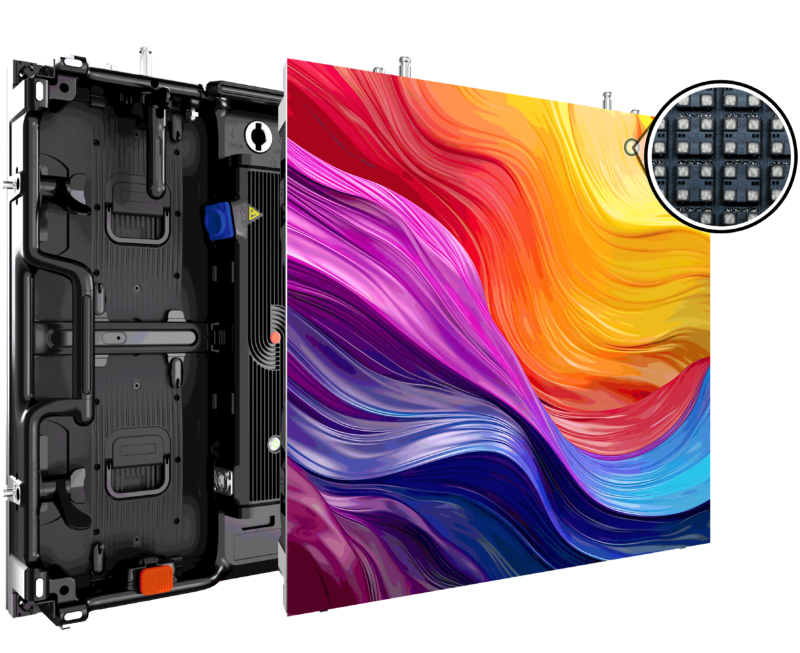

TrueTour FOURTress
Built Strong. Performs Brilliantly.
TrueTour FOURTress represents a premium LED solution, specifically designed for demanding touring and mobile applications where screens need to look exceptional and hold up under pressure. It combines high contrast, strong image performance, and a robust 4-in-1 LED architecture to support premium narrow-pitch rental environments. True Tour FOURTress is a solution that helps reduce maintenance burden while extending long-term value through greater durability and serviceability.

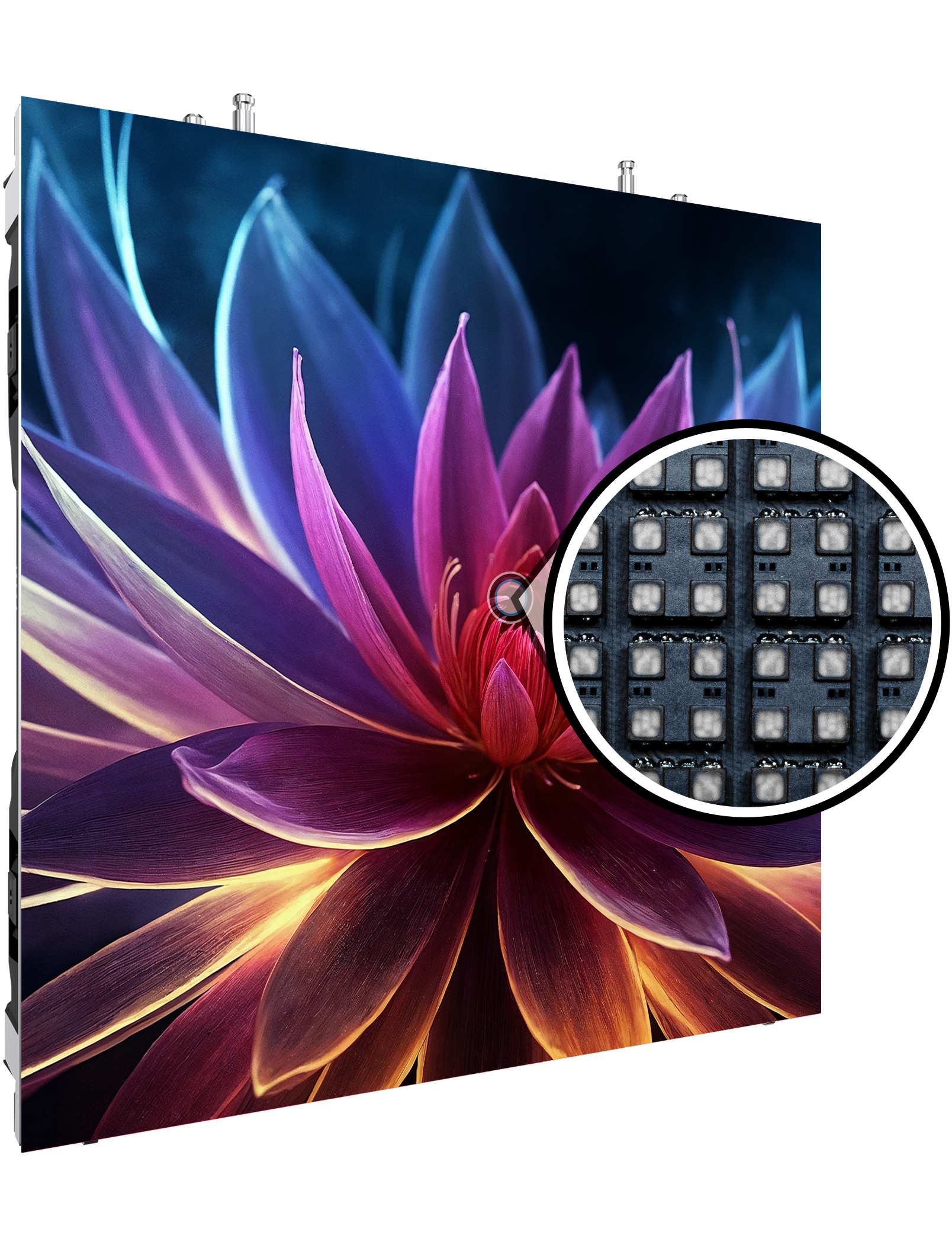

Touring-grade durability
FOURTress is engineered for the realities of transport, setup, and repeated use. Its 4-in-1 LED structure greatly improves resistance to surface impact and supports a more rugged screen build for mobile production environments. True Tour FOURTress can withstand up to 13kg impact per pixel, up to 10x stronger than standard SMD1515.
High Brightness
1,500 nits
Exceptional visibility with vibrant, high-impact visuals in any environment.
Ultra-High Refresh Rate
7,680Hz
Delivers ultra-smooth playback with flicker-free performance.
High Contrast Ratio
12,000:1
Creates deeper blacks, brighter highlights, and enhanced image depth.
High Grayscale Processing
16-bit
Produces smooth gradients and lifelike detail for superior image quality.
Wide Colour Gamut
99.9% DCI-P3
Accurately reproduces an extensive colour spectrum for vivid, true-to-life visuals.
High Contrast Image Performance
Tight 4-in-1 pixel packing with reduced gaps between pixels and deeper blacks allow for a contrast ratio up to 10,000:1, producing a sharper, more refined image. This makes True Tour FOURTress a strong choice when visual impact and clean presentation matter in live environments.

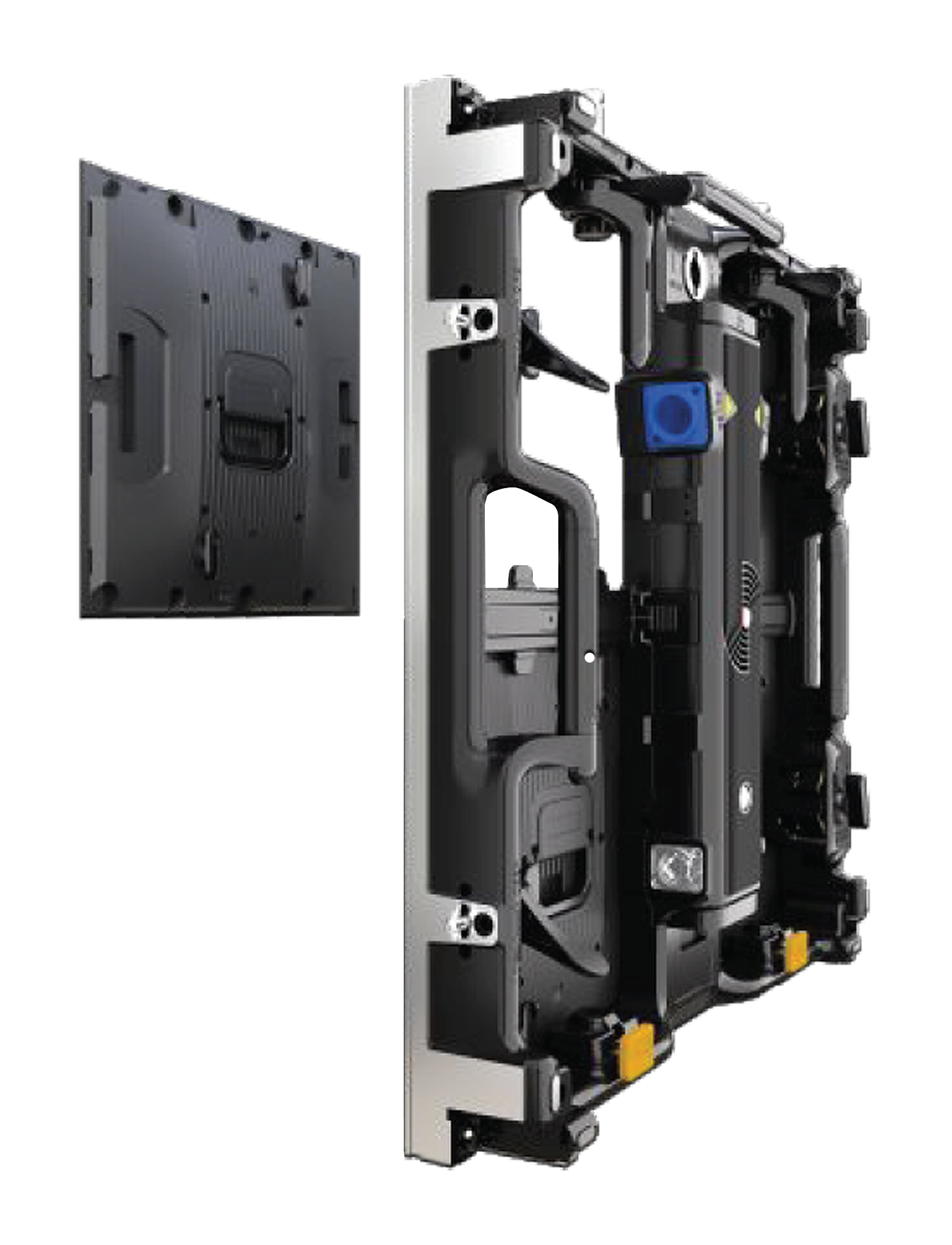

Enhanced Serviceability
FOURTress simplifies warehouse maintenance by enabling faster, easier servicing with standard soldering tools. The larger 4-in-1 package footprint makes removal and replacement faster and more efficient than working with individual SMD1515 chips. That means faster replacement, simpler handling, and less downtime when maintenance is required.

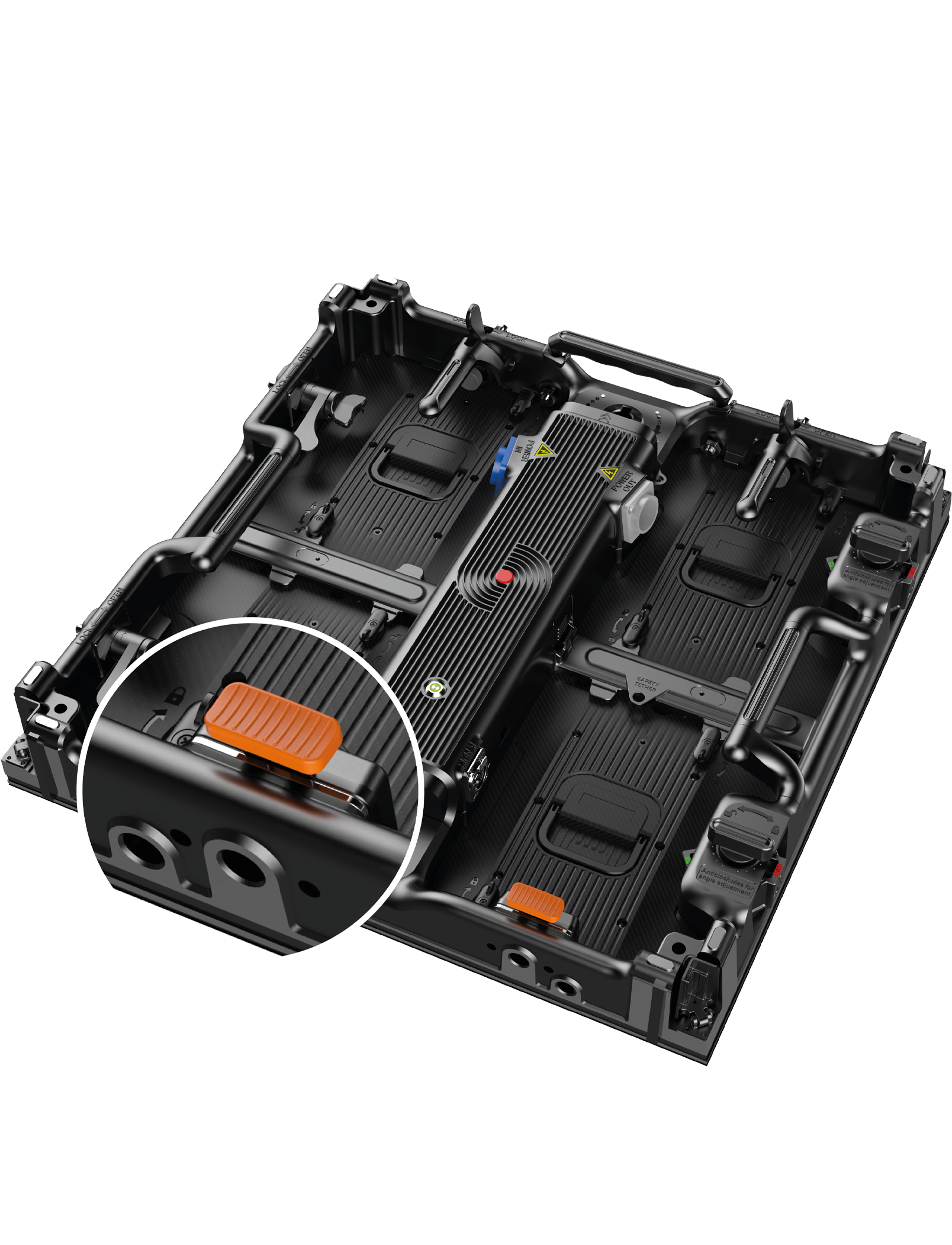

Unique Arc Lock System
The TrueTour Easy Lock System features a patented quick-lock mechanism that delivers fast, accurate panel alignment for streamlined installation and dependable performance.
• Patented Quick-Lock: Fast, secure cabinet installation.

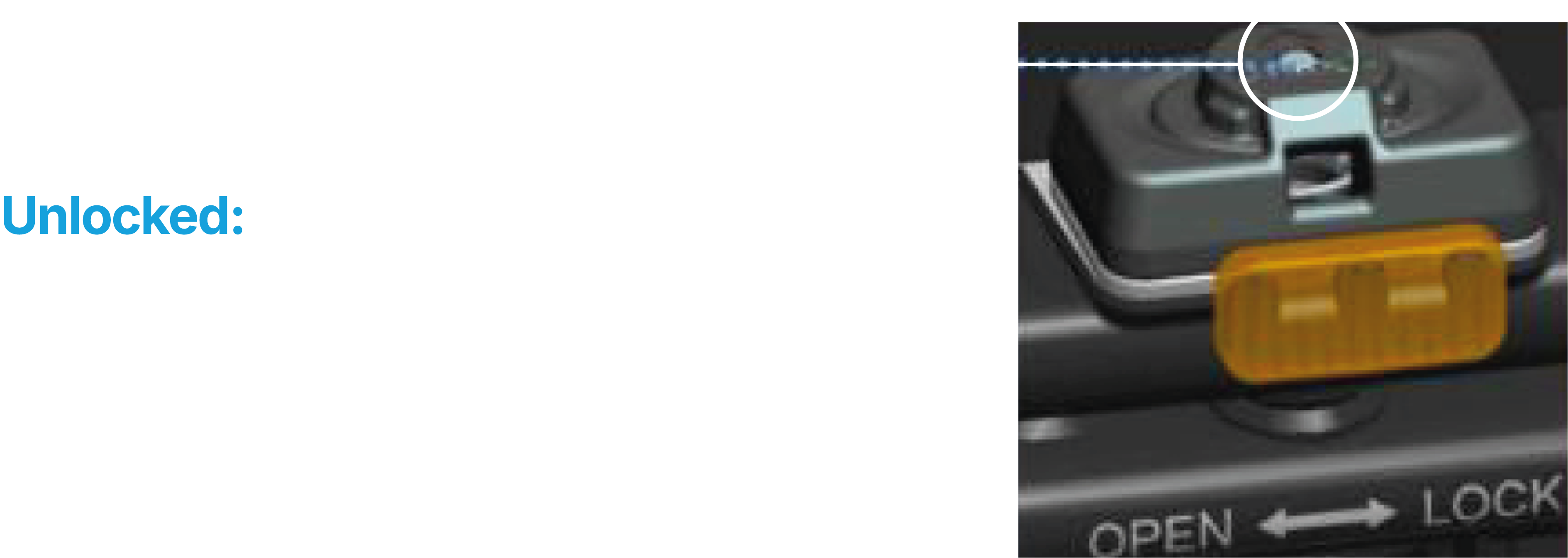

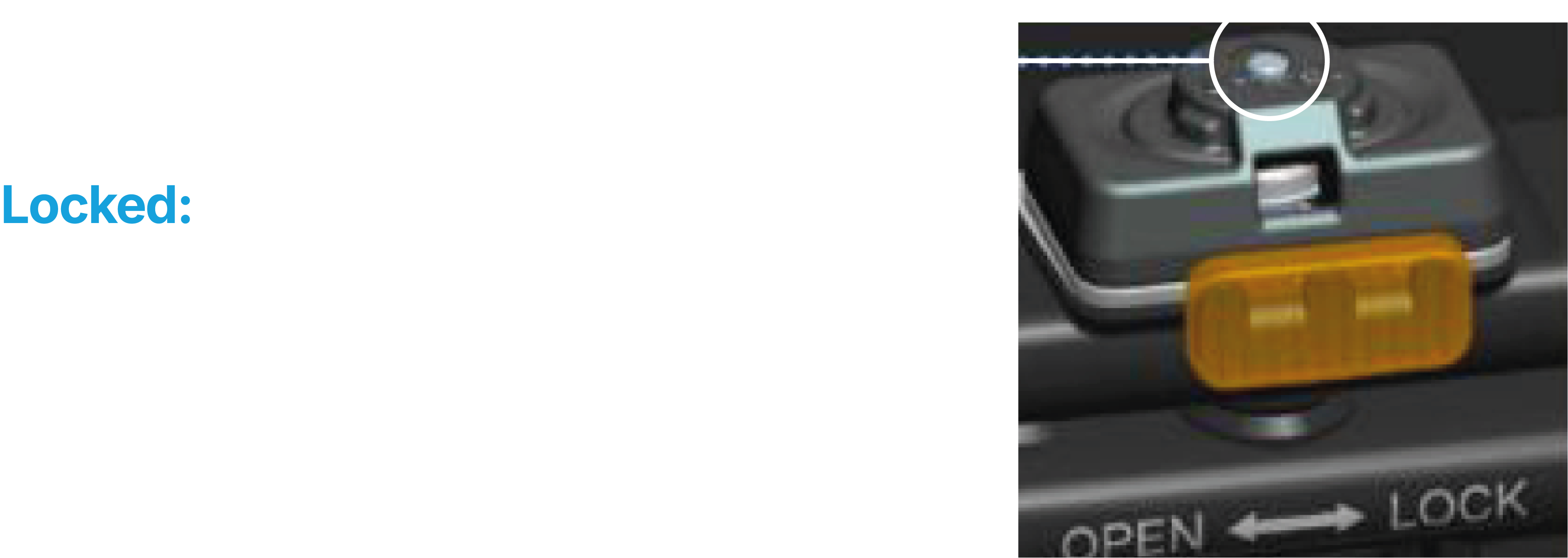

• Visual Lock Indicator: Pin raised = Locked, pin flush = Unlocked.
• ArcLock™ Technology: Enables seamless curved displays.
• Precision Alignment: Ensures perfect panel alignment.
• Visual Lock Indicator: Pin raised = Locked, pin flush = Unlocked.
• ArcLock™ Technology: Enables seamless curved displays.
• Precision Alignment: Ensures perfect panel alignment.
Rental Ready Value
Built for premium mobile narrow-pitch applications, True Tour FOURTress is positioned to deliver a stronger return on investment over time. The added durability helps reduce repair frequency and supports long-term operational efficiency.

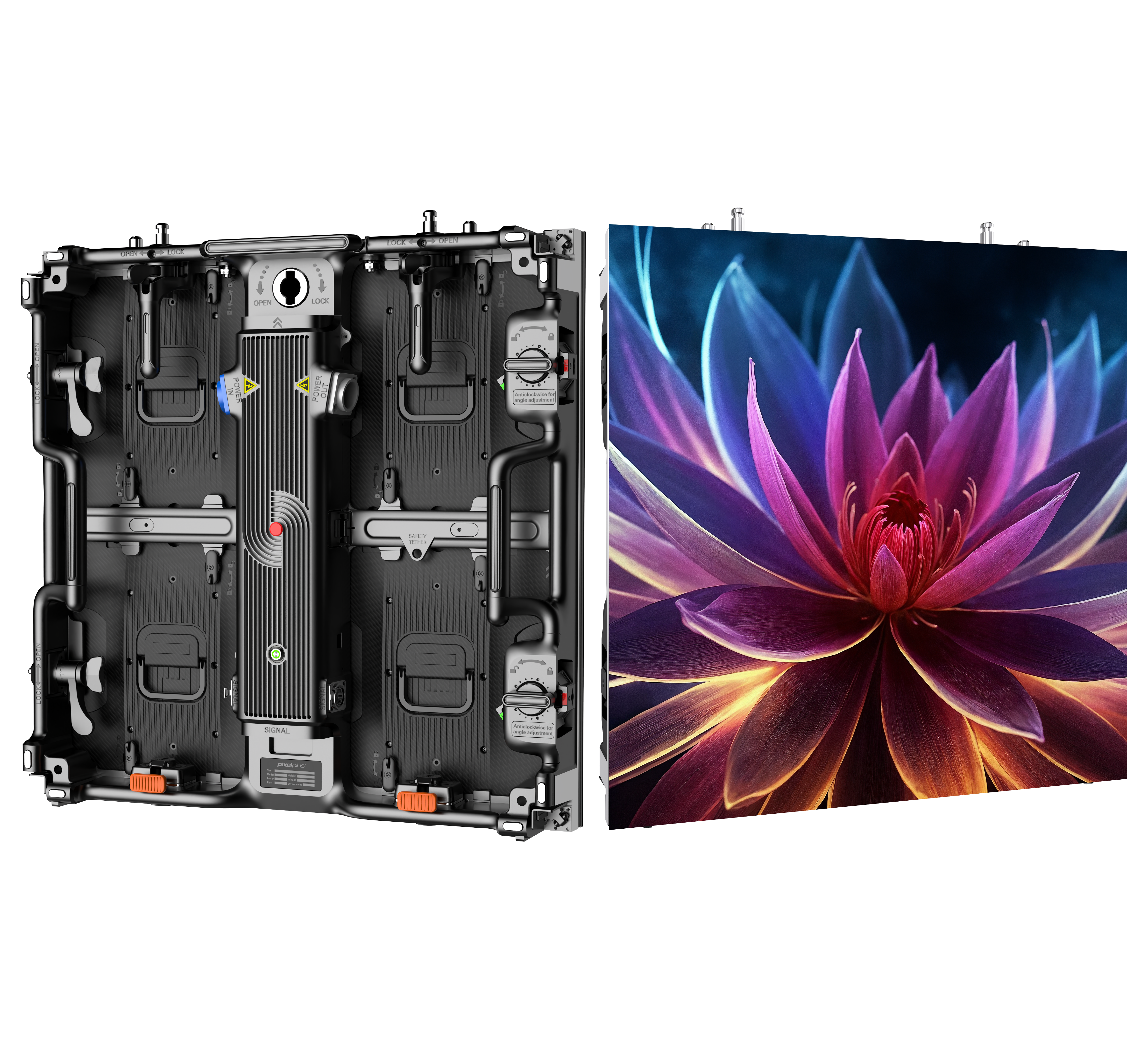

TrueTour FOURTress
True quality for the road ahead.
TrueTour FOURTress brings together rugged construction, refined visual performance, and practical serviceability in one premium LED solution. For teams that need a screen that can travel, perform, and keep delivering show after show, it is built to meet the demands of modern touring.
