| ixel Pitch (mm) | 3.9–7.8 |
| Pixel Density (dots/m²) | 207,396 |
| LED Configuration | SMD1921 |
| Brightness | 4,500 nits |
| Module Resolution (px × px) | 128 × 16 |
| Module Size (mm × mm) | 500 × 125 |
| Module Weight | 0.3kg |
| Module Thickness | 14.5mm |
| Cabinet Resolution (px × px) | 256 × 64 |
| Cabinet Size (mm × mm) | 1,000 × 500 |
| Cabinet Weight | 7.8kg |
| Cabinet Thickness | 82mm |
| Transparency | 40% |
| Curving (Concave/Convex) | Concave -15° ~ Convex +15° |
| Maximum / Average Power Consumption (W) | 300 / 100 |
| Horizontal Viewing Angle | 140° |
| Vertical Viewing Angle | 140° |
| Grey Scale | 14 bit |
| Refresh Rate | 3,840–7,680 Hz |
| Scan Ratio | 08-Jan |
| Input Voltage | AC100–220V |
| Working Temperature | -40 ~ +60°C |
| Operating Humidity | 10%–90% RH |
| Ingress Protection | IP65 |
| Working Environment | Indoor |
| Service Access | Front / Rear |
| Certifications | CE, FCC, ETL |
| Maximum Hanging (Cabinets) | 30 |
| Maximum Stacking (Cabinets) | 16 |
| Processing Platform | NovaStar / Colorlight / Brompton |

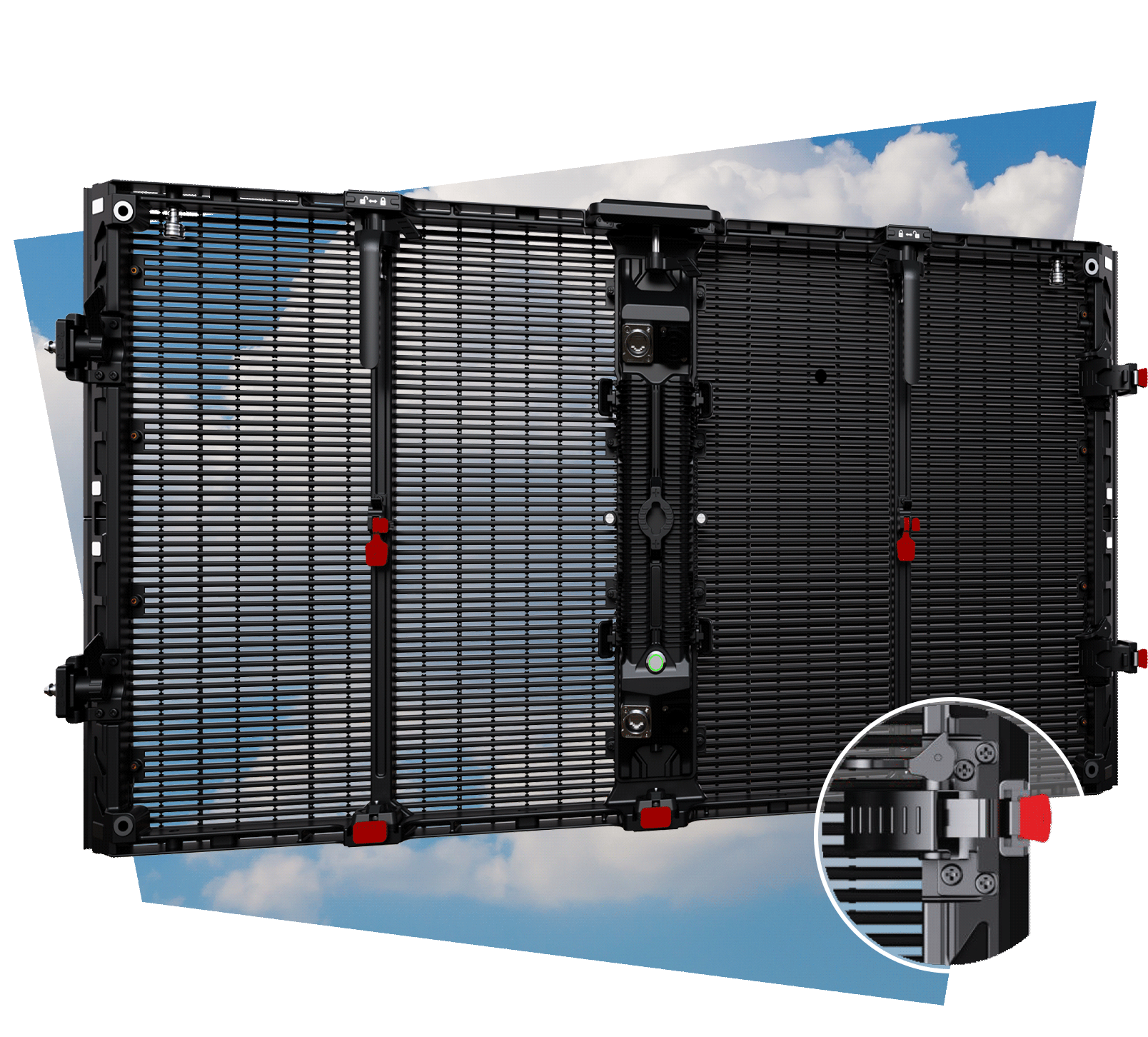

TrueTour Transparent
Capture Attention Without Sacrificing Visibility.
Bring the stage, venue, and architecture to life with a transparent LED display that delivers high-impact visuals without blocking the view. Pixel Plus TrueTour Transparent is a high-transparency outdoor LED solution designed for live events, touring environments, installs, and architectural applications where both visibility and performance matter.
Engineered for demanding conditions and reliable performance across a wide operating range, True Tour Transparent is a transparent LED system that balances visual impact, practicality, and long-term reliability for professional applications.
Maintain Your Sightlines
TrueTour Transparent can be set to 40% transparency to maintain sightlines and architectural openness. Create vivid content while preserving light, depth, and unobstructed view lines.
High Brightness
4,500 nits
Delivers bright, smooth, high-quality visuals with exceptional clarity in outdoor and high-ambient-light environments.
Protection for Outdoor Durability
IP65 Rated
Provides dependable dust and water resistance for reliable performance in demanding outdoor installations.
Front & Rear Service Access
Dual Access Design
Enables fast, flexible maintenance with convenient front and rear access for simplified servicing in any installation.

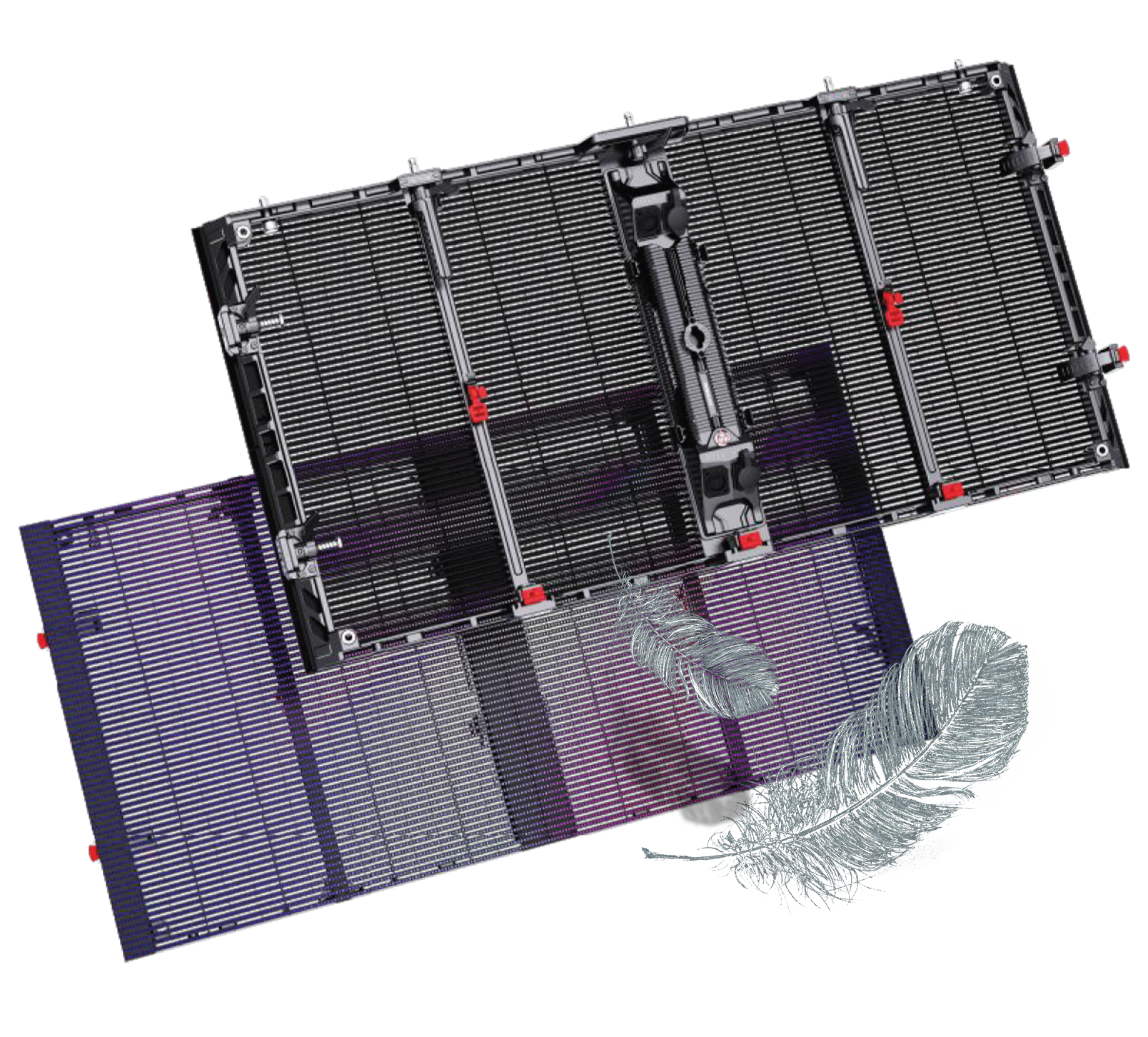

Ultra-Lightweight
The ultra-lightweight cabinet design makes it easier to handle, transport, and install, while the slim cabinet profile supports cleaner, more discreet integration.
Control & Compatibility
True Tour Transparent is compatible with Novastar, Colorlight, and Brompton processing platforms, giving production teams flexibility across different control workflows.
Flexible Install
TrueTour Transparent supports curving from -15° concave to +15° convex for creative configurations and challenging venue layouts.
TrueTour Transparent
Built to help your content stand out
while the environment stays visible.
For brands, venues, and production teams that want a transparent lightweight LED solution with premium visual performance and practical deployment advantages.
