Pixel Plus is a Stage Audio Works brand, devoting to delivering innovative multi-functional
LED display solutions to the house of worship, live production, digital signage
and retail markets where quality is no compromise.
Uncompromised Visual Performance

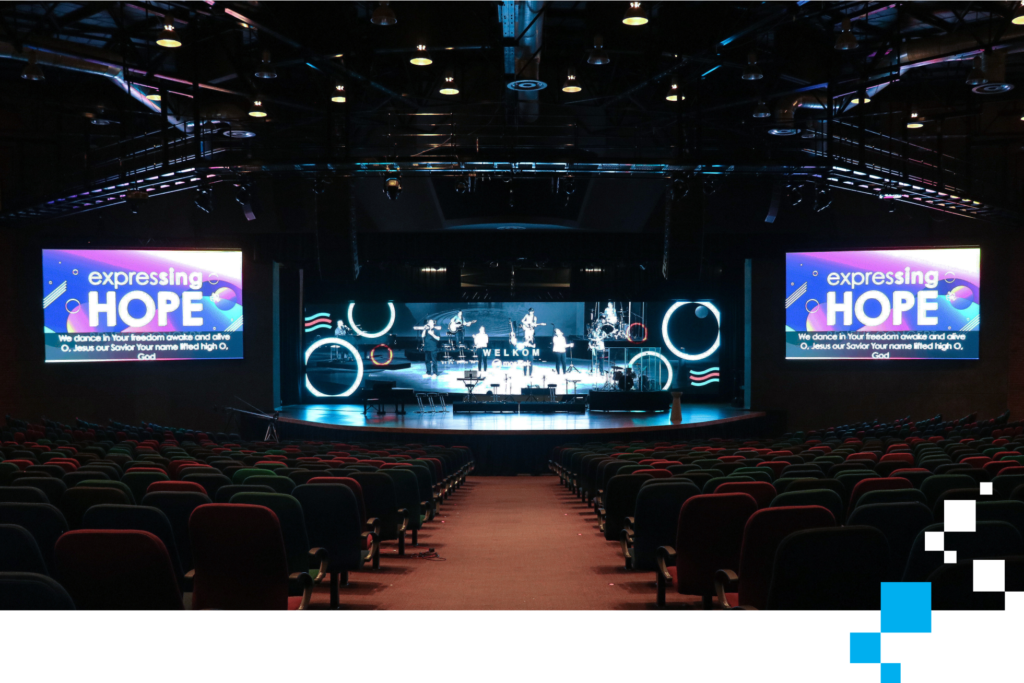

Houses of Worship
From foyer signage to on-stage display screens, Pixel Plus offer cost-effective solutions with high refresh rates that ensure crystal clear messaging to your congregation.

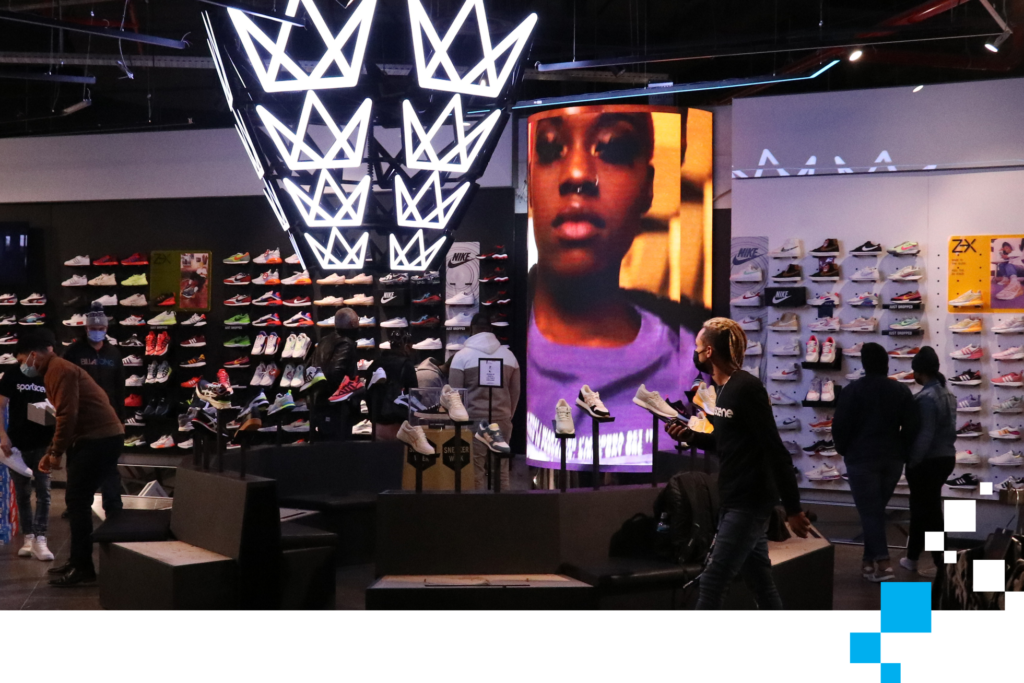

Commercial Signage
From retail stores to commercial offices, Pixel Plus offer low-density pixel solutions up to 1mm pixel pitch with high refresh rates providing shoppers with an energizing viewing experience

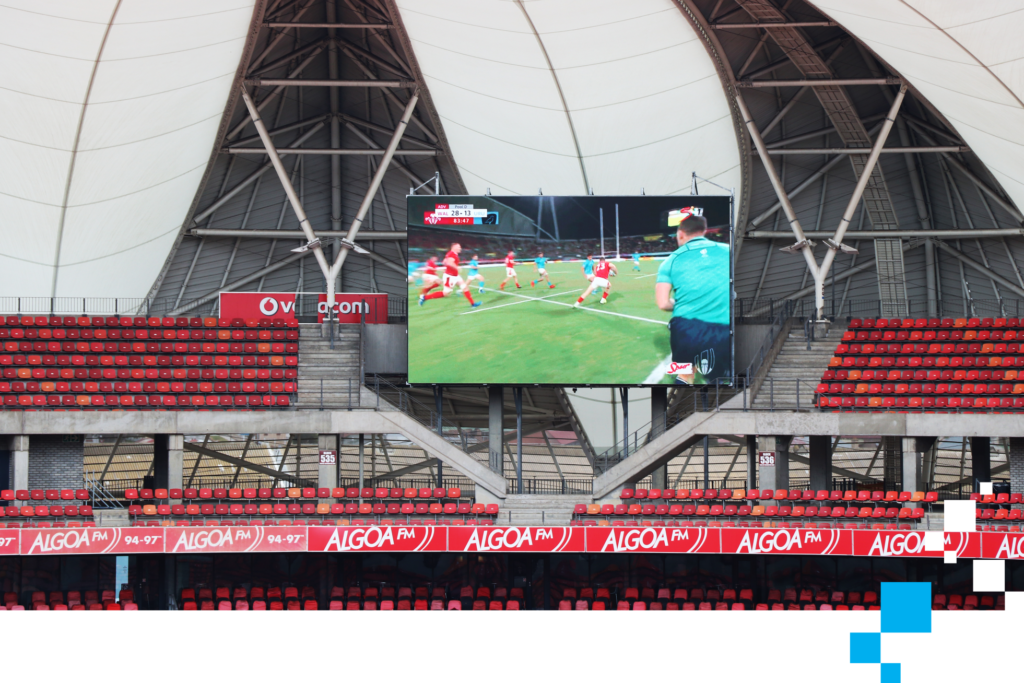

Outdoor Digital Signage
From outdoor billboards to stadium and sporting venue LED screens, Pixel Plus offer robust and customisable solutions that will boost your message further.
Products
PixelPlus Xcell
Xcell is a cost-effective indoor LED display solution tailored for rental & installation applications where picture quality is no compromise.
PixelPlus Xcite
Xcite is an indoor solution tailored for fixed installations within houses of worship with a rental style panel for precision and down-the-road flexibility.
PixelPlus Xceed
The Xceed series is best suited for indoor and outdoor rental applications geared for high performance, fast installation and down-the-road flexibility.

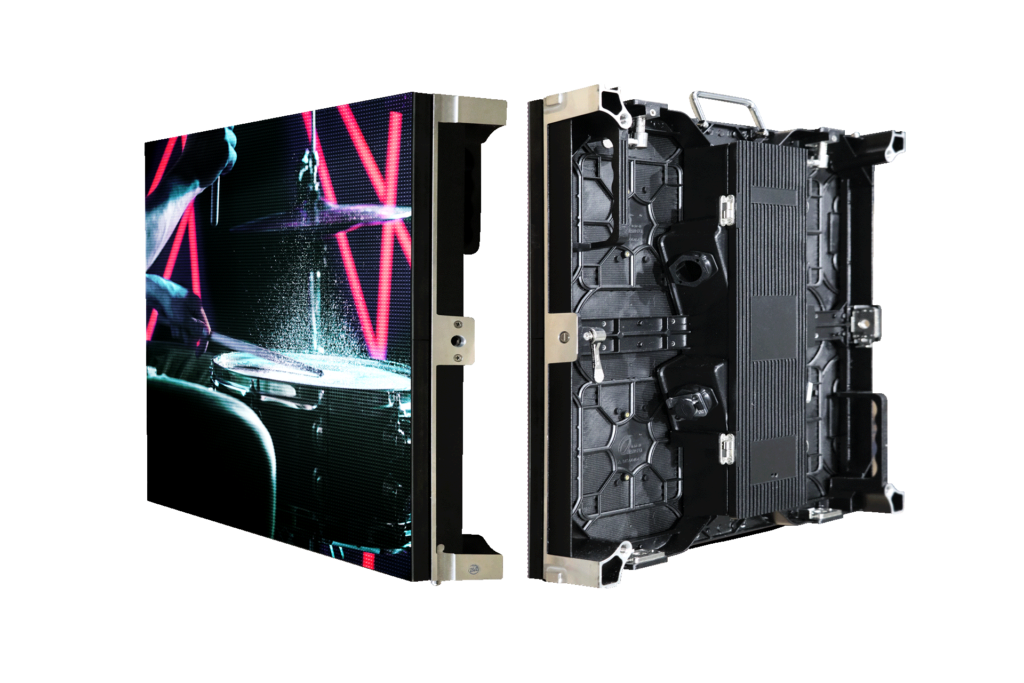

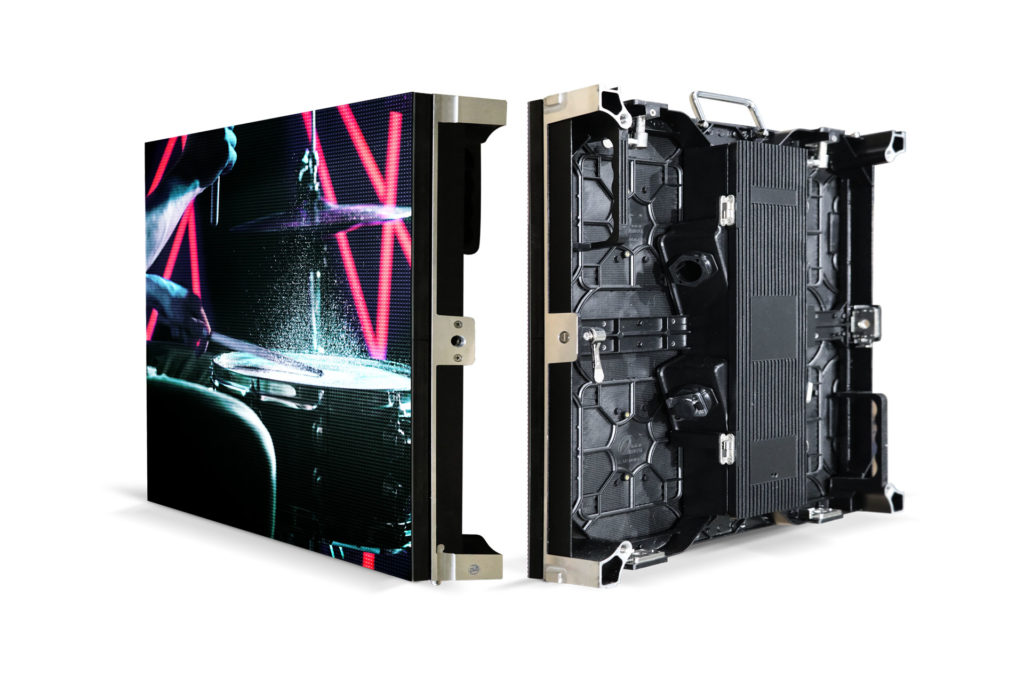

PixelPlus Xcell
Cost-effective indoor display solution tailored for live event environments where performance is no compromise.
The PixelPus Xcell range of LED is a lightweight and cost-effective indoor LED display solution best suited for flown applications in live production environments and the ideal choice for houses of worship. The panel is serviceable from the rear and boasts a high refresh rate of >3840Hz.
Key Features:
• 500x500mm / 500x1000mm
• Ideal for flown applications
• Rear maintenance
• Lightweight construction
• High refresh rate
• Processed by NovaStar
SPECIFICATIONS
| Pitch | 3.9mm | 3.9mm |
| Viewing Distance | >3.9m | >3.9m |
| LED Type | SMD2020 | SMD2020 |
| Pixel Density | 65536 dots/m² | 65536 dots/m² |
| Brightness (Black Face SMD) | >800cd/m² | >800cd/m² |
| View Angle (H / V) | 140º/130º | 140º/130º |
| Refresh Rate | >3840Hz | >3840Hz |
| Module Size | 250x250mm | 250x250mm |
| Cabinet Size | 500x500mm | 500x1000mm |
| Cabinet Res. | 128x128px | 128x256px |
| Drive Mode | 1/16 scan | 1/16 scan |
| Max Power | 512W/m² | 512W/m² |
| Voltage | 110v – 240v | 110v – 240v |
| Weight | 8kg/pcs | 14kg/pcs |

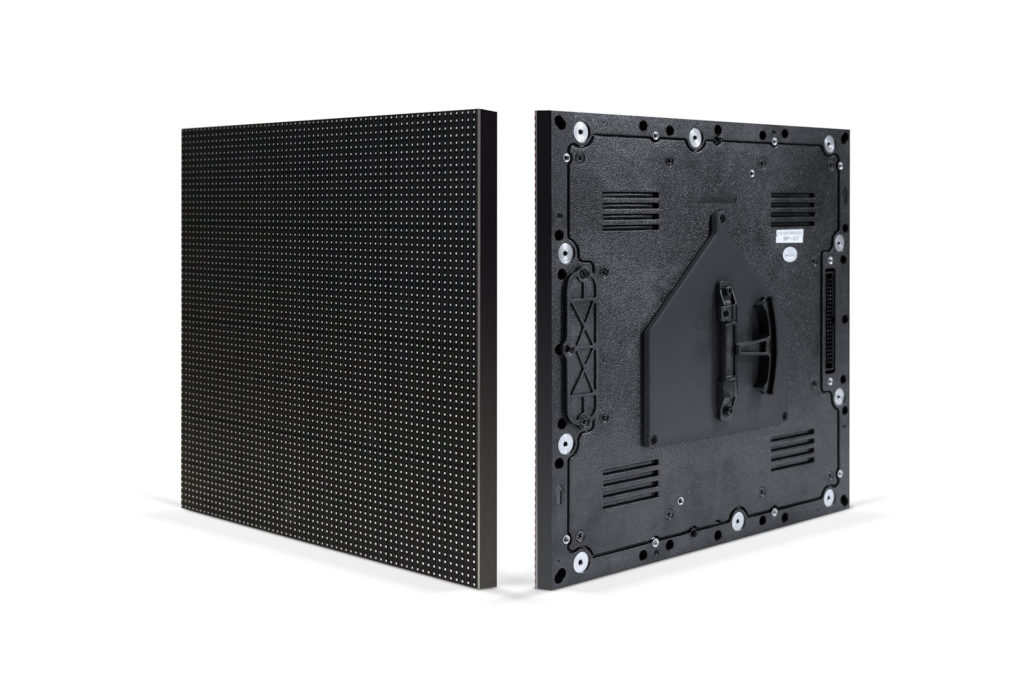

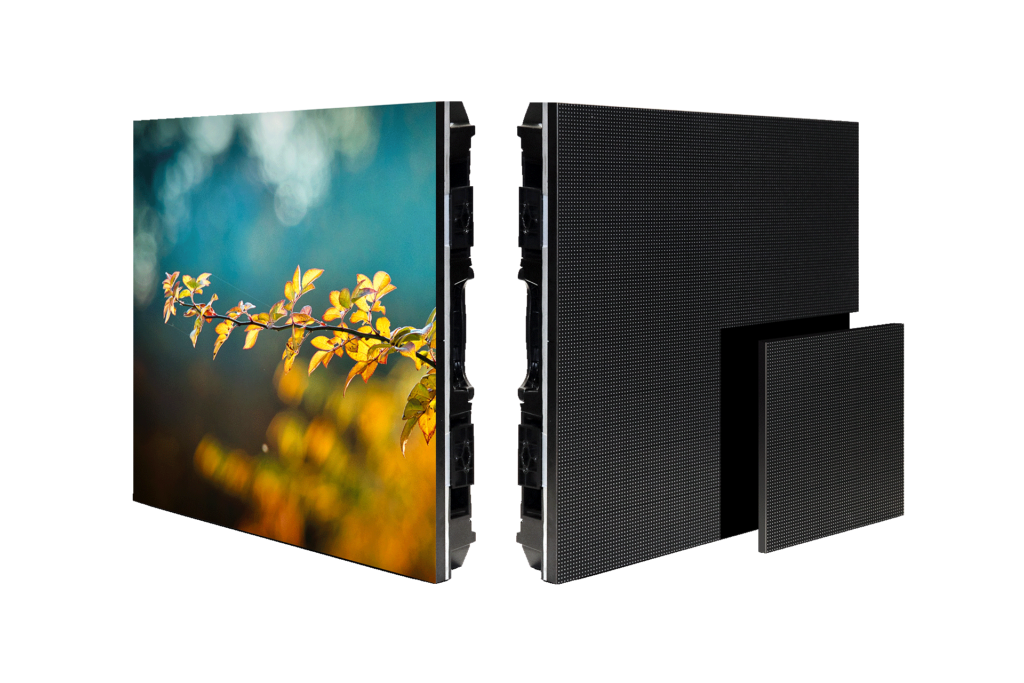

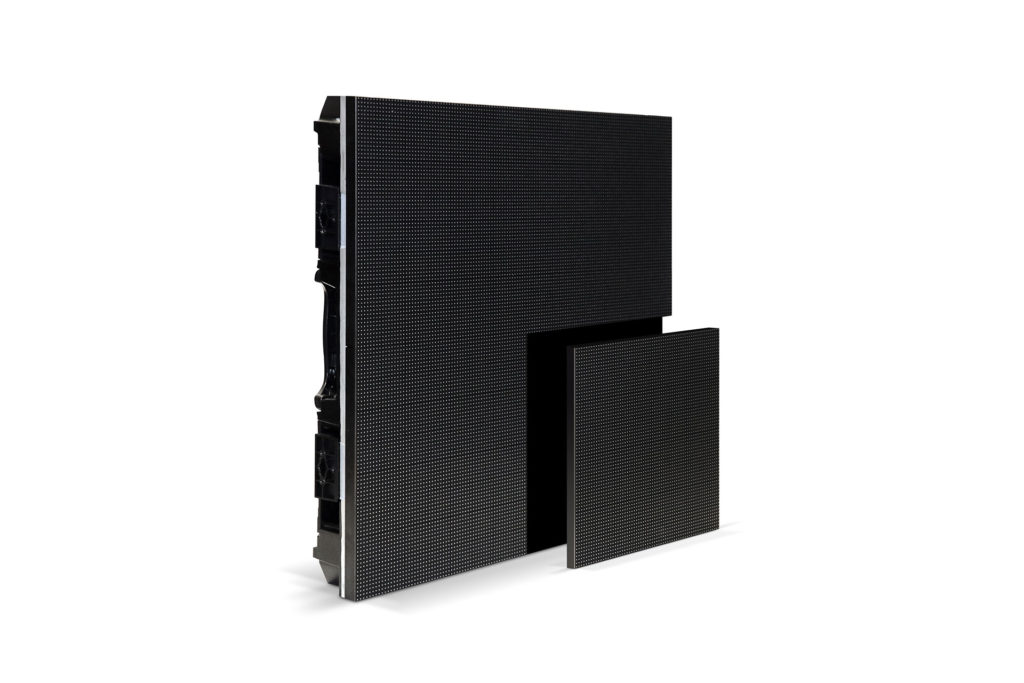

PixelPlus Xcite
High-performance indoor LED displays best suited for fixed house of worship installations.
The PixelPlus Xcite range of LED is an indoor solution tailored for fixed installations within houses of worship with a rental style panel for precision and down-the-road flexibility. The panel can be serviced from the front or rear and boasts a high refresh rate of >1920Hz – 3840Hz.
Key Features
• Black Face SMD High Contrast
• Calibration Memory in Module
• Magnetic installation
• No AB Module (no left right)
• Optimized Thermal Design
• Big Viewing Angle
• HDR Ready
• No Ghosting
• Extremely Flat
• High Refresh Rate
SPECIFICATIONS
| Pitch | 1.5mm | 1.9mm | 2.6mm | 2.9mm | 3.9mm |
| Brightness (Black Face SMD) | >1000cd/m² | >1000cd/m² | >1000cd/m² | >1000cd/m² | >1000cd/m² |
| Viewing Distance | >1.5m | >1.9m | >2.6m | >2.97m | >3.9m |
| LED Type | SMD1010 | SMD1010 | SMD1010/1515 | SMD2020 | SMD2020 |
| Pixel Density | 443556 dots/m² | 276676 dots/m² | 147456 dots/m² | 112896 dots/m² | 65536 dots/m² |
| View Angle | 140º/140º | 140º/140º | 140º/140º | 140º/140º | 140º/140º |
| Refresh Rate | >1920-3840Hz | >1920-3840Hz | >1920-3840Hz | >1920-3840Hz | >1920-3840Hz |
| Module Size | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Cabinet Size | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm |
| Cabinet Res. | 333x333px | 263x263px | 192x192px | 168x168px | 128x128px |
| Drive Mode | 1/xx scan | 1/32 scan | 1/16 scan | 1/14 – 1/28 scan | 1/16 scan |
| Environment | IP20 | IP20 | IP20 | IP20 | IP20 |
| Max Power | 420W/m² | 420W/m² | 420W/m² | 420W/m² | 420W/m² |
| Voltage | 110v – 240v | 110v – 240v | 110v – 240v | 110v – 240v | 110v – 240v |
| Fire Rate | 94UL-VO | 94UL-VO | 94UL-VO | 94UL-VO | 94UL-VO |
| EU Certification | CE, TUV EMC | CE, TUV EMC | CE, TUV EMC | CE, TUV EMC | CE, TUV EMC |
| US Certification | FCC, ETL | FCC, ETL | FCC, ETL | FCC, ETL | FCC, ETL |
| Weight | 9.5 – 10kg/pcs | 9.5 – 10kg/pcs | 9.5 – 10kg/pcs | 9.5 – 10kg/pcs | 9.5 – 10kg/pcs |

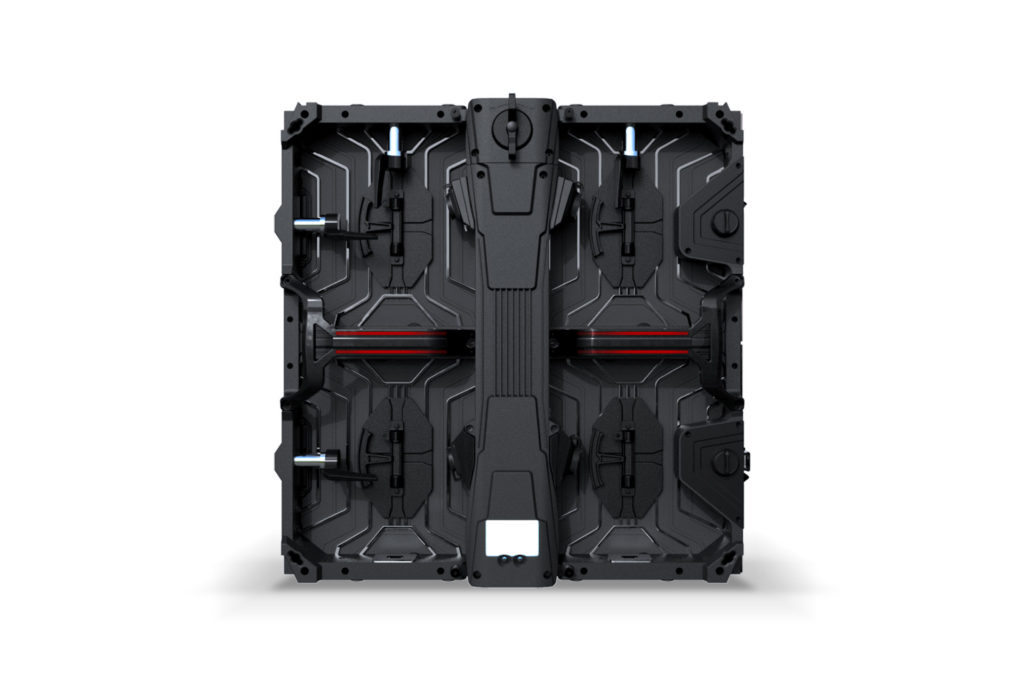

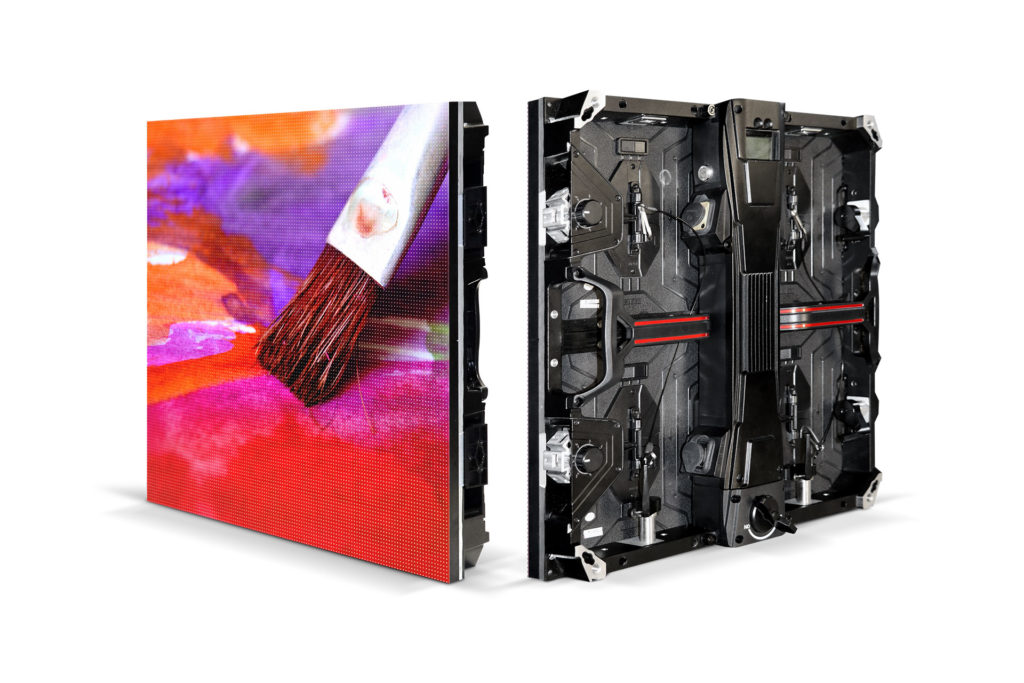

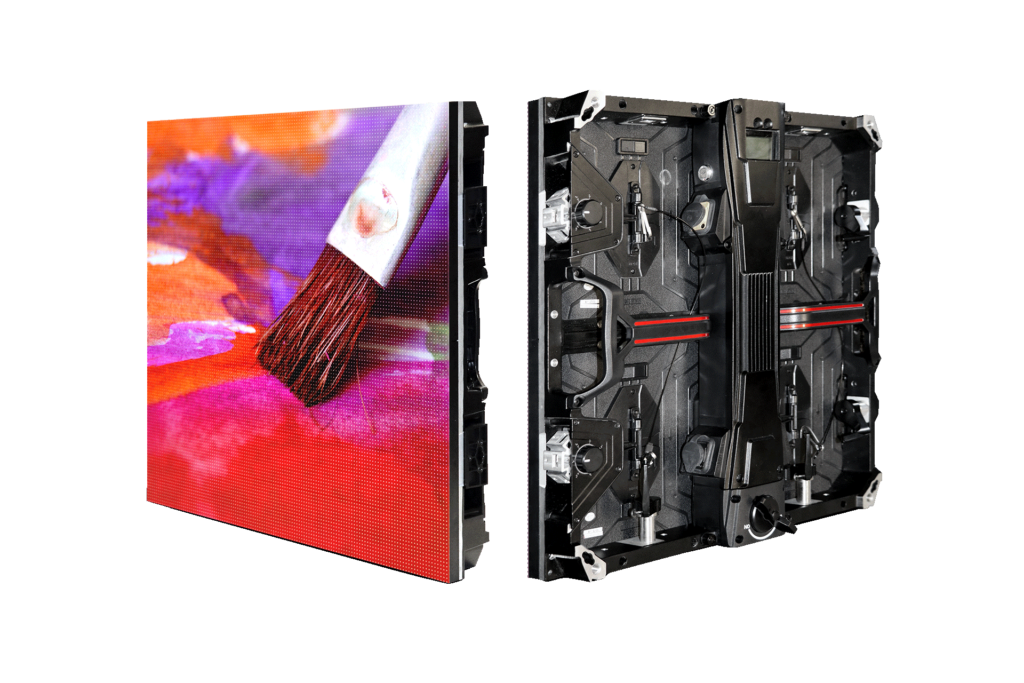

PixelPlus Xceed
High-performance, curvable indoor & outdoor LED displays best suited for rental applications.
The PixelPus Xceed series is a high performance indoor and outdoor LED display solution tailor-made for rental applications. The panel can be serviced from the front or rear and is extremely easy and fast to install with multiple stacking/hanging options.
Key Features
• Black Face SMD High Contrast
• Calibration Memory in Module
• Magnetic Installation
• Universal Module
• Optimized Thermal Design
• Wide Viewing Angle
• HDR Ready
• No Ghosting
• High Refresh Rate
• Receiver Card: Novastar A5s/A8s
SPECIFICATIONS
| Pitch | 1.5mm | 1.9mm | 2.6mm | 2.9mm | 3.9mm |
| Brightness (Black Face SMD) | >1000cd/m² | >1000cd/m² | >1000cd/m² | >1000cd/m² | >1000cd/m² |
| Viewing Distance | >1.5m | >1.9m | >2.6m | >2.9m | >3.9m |
| LED Type | SMD1010 | SMD1010/1515 | SMD1010/1515 | SMD1010/1515 | SMD2020 |
| Pixel Density | 4414736 dots/m² | 262144 dots/m² | 147456 dots/m² | 112896 dots/m² | 65536 dots/m² |
| View Angle | 160º/160º | 160º/160º | 160º/160º | 160º/160º | 160º/160º |
| Refresh Rate | >1920-3840Hz | >1920-3840Hz | >1920-3840Hz | >1920-3840Hz | >1920-3840Hz |
| Module Size | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Cabinet Size | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm |
| Cabinet Res. | 320x320px | 256x256px | 192x192px | 168x168px | 128x128px |
| Drive Mode | x scan | 1/32 scan | 1/16 scan | 1/14 – 1/28 scan | 1/16 scan |
| Environment | IP20 | IP20 | IP20 | IP20 | IP20 |
| Max Power | 420W/m² | 420W/m² | 420W/m² | 420W/m² | 420W/m² |
| Voltage | 110v – 240v | 110v – 240v | 110v – 240v | 110v – 240v | 110v – 240v |
| Fire Rate | 94UL-VO | 94UL-VO | 94UL-VO | 94UL-VO | 94UL-VO |
| EU Certification | CE, TUV EMC | CE, TUV EMC | CE, TUV EMC | CE, TUV EMC | CE, TUV EMC |
| US Certification | FCC, ETL | FCC, ETL | FCC, ETL | FCC, ETL | FCC, ETL |
| Weight | 8.5kg/pcs | 8.5kg/pcs | 8.5kg/pcs | 8.5kg/pcs | 8.5kg/pcs |
SPECIFICATIONS
| Pitch | 2.6mm | 2.9mm | 3.2mm | 3.9mm | 4.8mm | 6.25mm |
| Brightness (True Black SMD) | >4000cd/m² | >4000cd/m² | >4500cd/m² | >4500cd/m² | >4500cd/m² | >4500cd/m² |
| Brightness (Black Shell SMD) | >5000cd/m² | >5000cd/m² | >6000cd/m² | >6000cd/m² | >6000cd/m² | >6000cd/m² |
| Viewing Distance | >2.6m | >2.9m | >3.2m | >3.9m | >4.8m | >6.25m |
| LED Type | SMDxxxx | SMDxxxx | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
| Pixel Density | 147456/m² | 112896/m² | 97344/m² | 65536/m² | 43264/m² | 25600/m² |
| View Angle | 140º/140º | 140º/140º | 140º/140º | 140º/140º | 140º/140º | 140º/140º |
| Refresh Rate | >1920-3840Hz | >1920-3840Hz | >1920-3840Hz | >1920-3840Hz | >1920-3840Hz | >1920-3840Hz |
| Module Size | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Cabinet Size | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm |
| Cabinet Res. | 192x192px | 168x168px | 156x156px | 128x128px | 104x104px | 80x80px |
| Drive Mode | 1/16 scan | 1/14 scan | 1/10 scan | 1/8 scan | 1/7 scan | 1/5 scan |
| Environment | IP65/55 | IP65/55 | IP65/55 | IP65/55 | IP65/55 | IP65/55 |
| Max Power | 950W/m² | 950W/m² | 950W/m² | 950W/m² | 950W/m² | 950W/m² |
| Voltage | 100v – 230v | 100v – 230v | 100v – 230v | 100v – 230v | 100v – 230v | 100v – 230v |
| Fire Rate | 94UL-VO | 94UL-VO | 94UL-VO | 94UL-VO | 94UL-VO | 94UL-VO |
| EU Certification | CE, TUV EMC | CE, TUV EMC | CE, TUV EMC | CE, TUV EMC | CE, TUV EMC | CE, TUV EMC |
| US Certification | FCC, ETL | FCC, ETL | FCC, ETL | FCC, ETL | FCC, ETL | FCC, ETL |
| Weight | 8.5kg/pcs | 8.5kg/pcs | 8.5kg/pcs | 8.5kg/pcs | 8.5kg/pcs | 8.5kg/pcs |

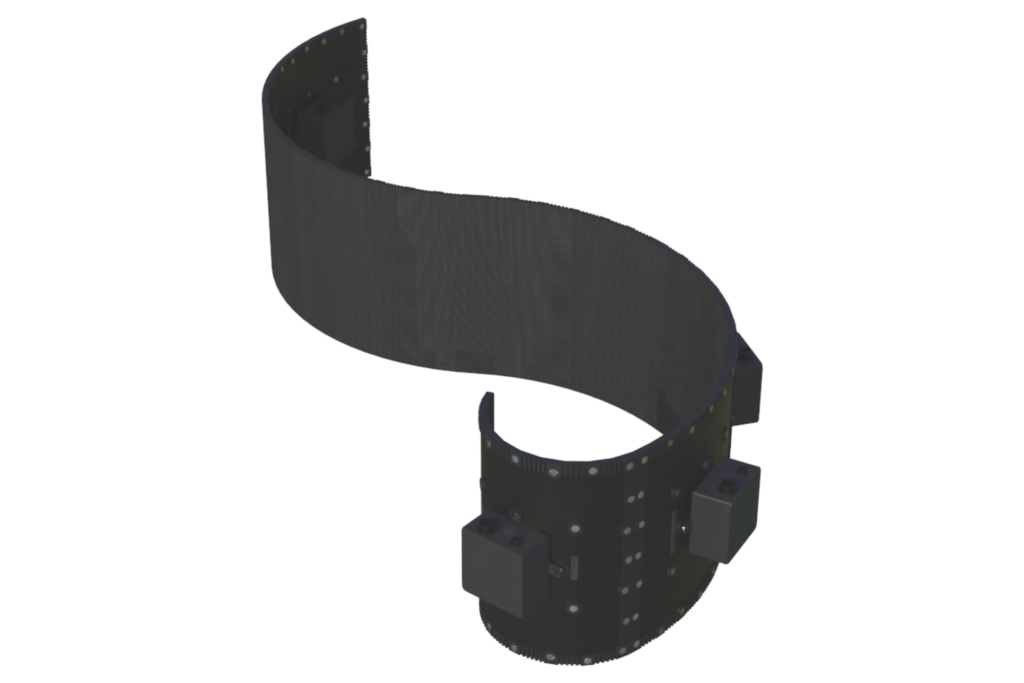

PixelPlus Xflex
Flexible LED displays for fixed installation applications
The Pixel Plus Xflex series is geared for the creative, tailor-made for fixed installation applications with flexible 360-degree capabilities, extremely lightweight and super-thin.
Key Features
• Fast installation
• Easy Maintenance
• IP Rate: Ip65 / IP54
• Waterproof Module
• 90º Horizontal Connection
• Front and Rear Maintenance
SPECIFICATIONS
| Pitch | P3.9 | P7.8 |
| Series No. | 1.5mm | 1.9mm |
| Brightness (Black Face SMD) | >4000cd/m² | >4000cd/m² |
| Viewing Distance | >3.9m | >7.8m |
| Pixel Density | 65536 dots/m² | 16384 dots/m² |
| View Angle | 160º (H) / 160º (V) | 160º (H) / 160º (V) |
| Refresh Rate | >1920-3840Hz | >1920-3840Hz |
| Module Size | 250x250mm | 250x250mm |
| Cabinet Size | 500x1000mm or 1000x1000mm or Customizable Size | 500x1000mm or 1000x1000mm or Customizable Size |
| Cabinet Res. | 128x256px or 256x256px | 64x128px or 256x256px |
| Drive Mode | 1/8 scan | 1/4 scan |
| Environment | IP65 / IP54 | IP65 / IP54 |
| Max Power | 900W/m² | 900W/m² |
| Voltage | 100v – 240v | 100v – 240v |
| EU Certification | CE, EMC, TUV-EMC | CE, EMC, TUV-EMC |
| US Certification | FCC, ETL, UL, PSE, CCC, ROHS | FCC, ETL, UL, PSE, CCC, ROHS |
| Weight | Aluminium: 35-45kg/pcs | Aluminium: 35-45kg/pcs |
| Steel: 40-50kg/pcs | Steel: 40-50kg/pcs |
